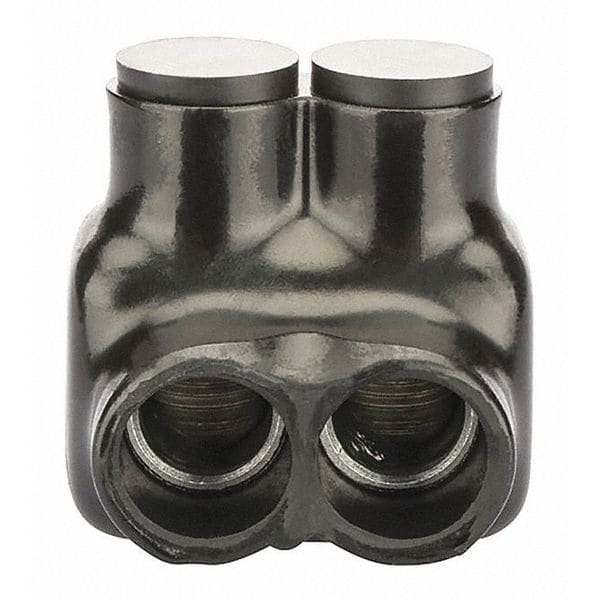

Polaris Ins 2 Port 250 se traduce como: Polaris Ins 2 Puerto 250
| Item | Insulated Tap Connector,2 Port,250-6 AWG |
|---|---|
| Material | Plastisol |
| Color | Black |
| Wire Size | 250 MCM-6 AWG |
| Type | Multi Cable |
| Hex Wrench Size | 0.3125 |
| Conductor Type | Copper, Aluminum |
| Ul Standard | B, UL 486A |
| Environmental Conditions | 90 C |
| Standard | cULus |
| Wire Type | C, Class B |
| Number Of Conductors | 2 |
| Al Conductor Max Amp | 230 |
| Finish | Plastisol |
| Temperature Rating | 90° C |
| Ul File No | E186991 |
| Dimensions | L=2.12 - W=2.25 - H=2.25 |
| Cu Conductor Max Amp | 290 |
| Application | Wire Termination |
| Voltage Rating | 600 V |
| Assortment | Black UV Coated Pre-Insulated Connectors |
| Env Temp | Cold Temperature rated to -45C |
| Conductor Al Size Range | 250 MCM – 6 AWG |
| Conductor Cu Size Range | 250 MCM – 6 AWG |
| Max Torque | 360 |
| Temp Rating | 90C, AL9CU |
| Wire Cable Class | Class B, Class C |
| Package Quantity | 1 |
