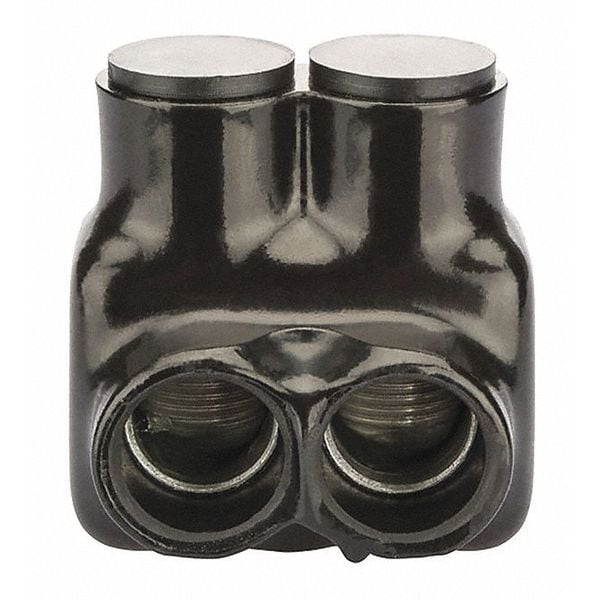

Polaris Ins 2 Port 350
| Item | Insulated Tap Connector,2 Port,350-6 AWG |
|---|---|
| Material | Plastisol |
| Color | Black |
| Type | Multi Cable |
| Wire Size | 350 MCM-6 AWG |
| Number Of Conductors | 2 |
| Dimensions | L=2.47 - W=2.5 - H=2.44 |
| Temperature Rating | 90° C |
| Standard | cULus |
| Wire Type | C, Class B |
| Application | Wire Termination |
| Finish | Plastisol |
| Environmental Conditions | 90 C |
| Voltage Rating | 600 V |
| Env Temp | Cold Temperature rated to -45C |
| Ul File No | E186991 |
| Conductor Al Size Range | 350 MCM – 10 AWG |
| Hex Wrench Size | 0.3125 |
| Conductor Cu Size Range | 350 MCM – 10 AWG |
| Wire Cable Class | Class B, Class C |
| Temp Rating | 90C, AL9CU |
| Al Conductor Max Amp | 280 |
| Max Torque | 400 |
| Cu Conductor Max Amp | 350 |
| Conductor Type | Copper, Aluminum |
| Ul Standard | B, UL 486A |
| Assortment | Black UV Coated Pre-Insulated Connectors |
| Package Quantity | 1 |
