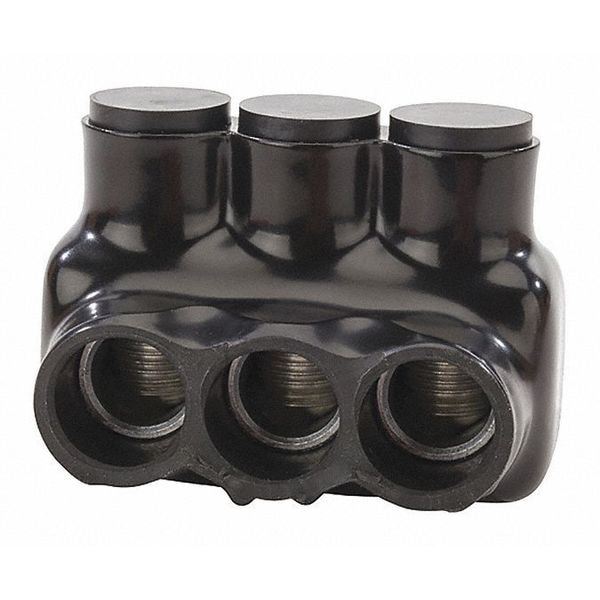

Polaris Ins Multi-Tap 250 3 Port Dse
| Item | Insulated Multi-Tap,250-6 AWG,3 Port DSE |
|---|---|
| Material | Plastisol |
| Wire Size | 250 MCM-6 AWG |
| Type | Double Sided Entry |
| Color | Black |
| Temperature Rating | 90° C |
| Finish | Plastisol |
| Application | Wire Termination |
| Dimensions | L=2.93 - W=2.28 - H=2.18 |
| Standard | cULus |
| Environmental Conditions | 90 C |
| Wire Type | C, Class B |
| Number Of Conductors | 3 |
| Voltage Rating | 600 V |
| Wire Cable Class | Class B, Class C |
| Cu Conductor Max Amp | 290 |
| Ul File No | E186991 |
| Assortment | Black UV Coated Pre-Insulated Connectors |
| Max Torque | 360 |
| Ul Standard | B, UL 486A |
| Al Conductor Max Amp | 230 |
| Conductor Type | Copper, Aluminum |
| Hex Wrench Size | 0.3125 |
| Env Temp | Cold Temperature rated to -45C |
| Temp Rating | 90C, AL9CU |
| Package Quantity | 1 |
