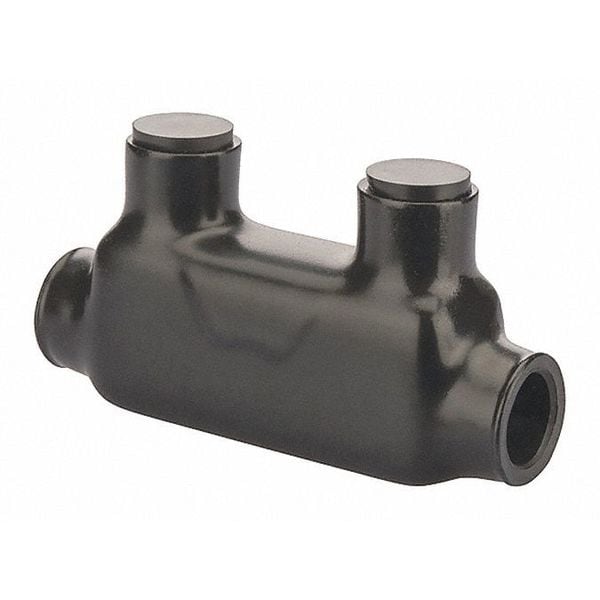

El Polaris Ins Splice 250 ISR-250 es un producto de alta calidad que ofrece comodidad y durabilidad para tus actividades al aire libre. Con materiales técnicos avanzados, este producto te mantendrá abrigado y protegido en climas fríos. ¡No dejes pasar la oportunidad de obtenerlo!
| Item | Insulated In-Line Splice,250-6 AWG |
|---|---|
| Color | Black |
| Material | Plastisol |
| Application | Wire Termination |
| Voltage Rating | 600 V |
| Wire Type | C, Class B |
| Wire Size | 250 MCM-6 AWG |
| Finish | Plastisol |
| Conductor Type | Copper, Aluminum |
| Environmental Conditions | 90 C |
| Assortment | Black UV Coated Pre-Insulated Connectors |
| Number of Conductors | 2 |
| Dimensions | L=4 - W=1.19 - H=1.9 |
| Max Torque | 360 |
| Standard | cULus |
| Conductor Cu Size Range | 250 MCM – 6 AWG |
| Ul Standard | UL486A, B |
| Temp Rating | 90C, AL9CU |
| Hex Wrench Size | 0.3125 |
| Ul File No | E186991 |
| Cu Conductor Max Amp | 290 |
| Temperature Rating | 90° C |
| Al Conductor Max Amp | 230 |
| Wire Cable Class | Class B, Class C |
| Type | Reducer, IN-Line Splicer |
| Conductor Al Size Range | 250 MCM – 6 AWG |
| Env Temp | Cold Temperature rated to -45C |
| Package Quantity | 1 |
