Polaris Ins Splice 350 se traduce como Polaris Ins Splice 350.

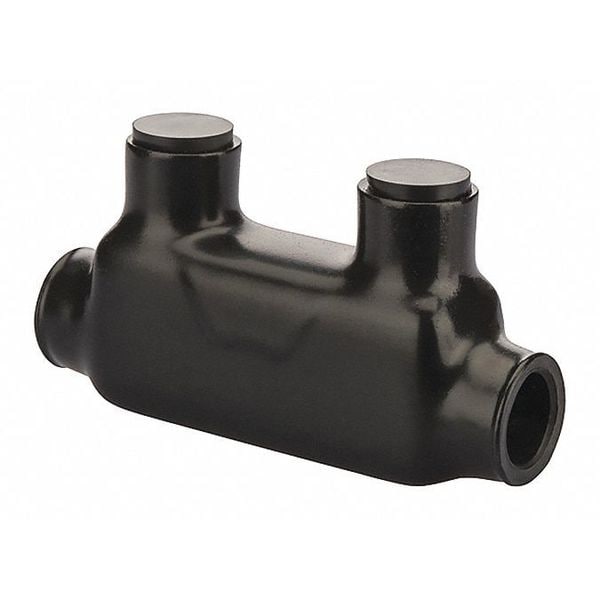

| Item | Insulated In-Line Splice,350-6 AWG |
|---|---|
| Material | Plastisol |
| Color | Black |
| Voltage Rating | 600 V |
| Wire Size | 350 MCM-6 AWG |
| Wire Type | C, Class B |
| Cu Conductor Max Amp | 350 |
| Hex Wrench Size | 0.3125 |
| Environmental Conditions | 90 C |
| Wire Cable Class | Class B, Class C |
| Ul Standard | UL486A, B |
| Dimensions | L=4.47 - W=1.32 - H=2.2 |
| Conductor Type | Copper, Aluminum |
| Conductor Al Size Range | 350 MCM – 10 AWG |
| Standard | cULus |
| Max Torque | 400 |
| Al Conductor Max Amp | 280 |
| Number of Conductors | 2 |
| Type | Reducer, IN-Line Splicer |
| Ul File No | E186991 |
| Assortment | Black UV Coated Pre-Insulated Connectors |
| Temp Rating | 90C, AL9CU |
| Finish | Plastisol |
| Conductor Cu Size Range | 350 MCM – 10 AWG |
| Application | Wire Termination |
| Temperature Rating | 90° C |
| Env Temp | Cold Temperature rated to -45C |
| Package Quantity | 1 |
