Polaris Ins Splice Hd 750 se traduce al español como "Cable empalmado de alta definición con aislamiento Polaris de 750".

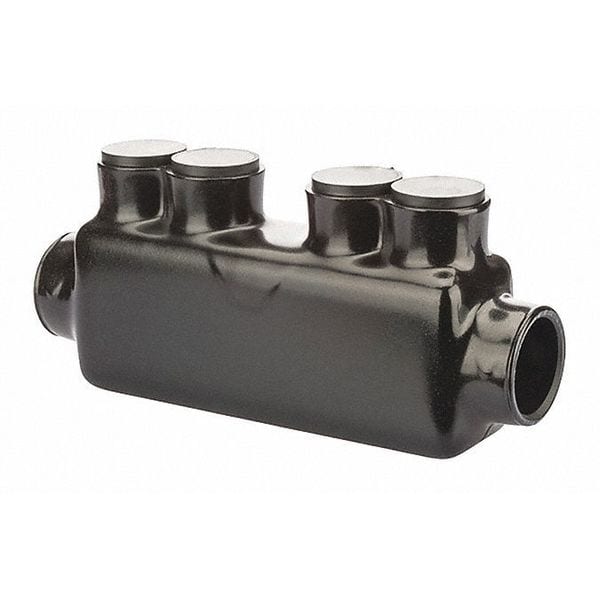

| Item | Insulated In-Line Splice,HD,750-250 MCM |
|---|---|
| Material | Plastisol |
| Color | Black |
| Voltage Rating | 600 V |
| Wire Size | 750-250 MCM |
| Wire Type | C, Class B |
| Standard | cULus |
| Environmental Conditions | 90 C |
| Finish | Plastisol |
| Number of Conductors | 2 |
| Application | Wire Termination |
| Dimensions | L=7.25 - W=1.75 - H=3.25 |
| Temperature Rating | 90° C |
| Type | Reducer, IN-Line Splicer |
| Ul File No | E186991 |
| Max Torque | 550 |
| Ul Standard | UL486A, B |
| Wire Cable Class | Class B, Class C |
| Hex Wrench Size | 0.375 |
| Env Temp | Cold Temperature rated to -45C |
| Al Conductor Max Amp | 435 |
| Assortment | Black UV Coated Pre-Insulated Connectors |
| Conductor Cu Size Range | 750 MCM – 1/0 AWG |
| Conductor Al Size Range | 750 MCM – 1/0 AWG |
| Conductor Type | Copper, Aluminum |
| Cu Conductor Max Amp | 535 |
| Temp Rating | 90C, AL9CU |
| Package Quantity | 1 |
