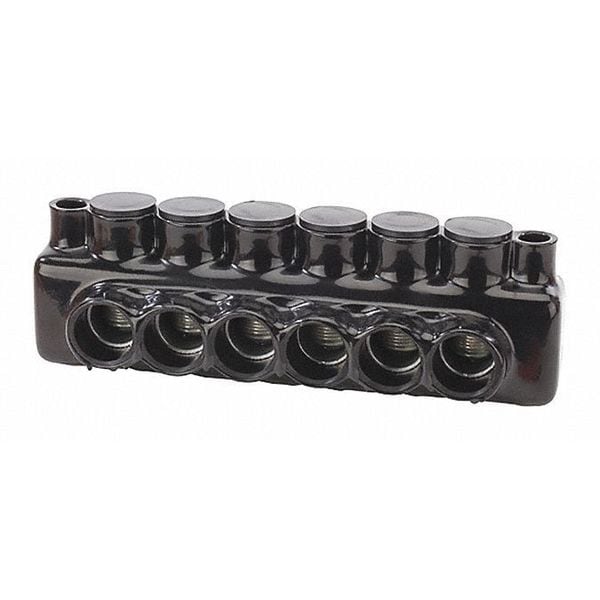

Polaris Mnt. Ins Mlti-Tap 600 6 Prt.
| Item | Mount Insulated Multi-Tap,600,6 Port |
|---|---|
| Material | Plastisol |
| Type | Double Sided Entry |
| Wire Size | 600 MCM-6 AWG |
| Color | Black |
| Voltage Rating | 600 V |
| Environmental Conditions | 75 C |
| Dimensions | L=9.780 - W=2.960 - H=3.150 |
| Application | Wire Termination |
| Number Of Conductors | 6 |
| Temperature Rating | 75 C |
| Standard | cULus |
| Wire Type | C, Class B |
| Finish | Plastisol |
| Max Torque | 550 |
| Conductor Cu Size Range | 600 MCM – 6 AWG |
| Cu Conductor Max Amp | 1,554 |
| Conductor Al Size Range | 600 MCM – 6 AWG |
| Env Temp | Cold Temperature rated to -45C |
| Assortment | Black UV Coated Pre-Insulated Connectors |
| Wire Cable Class | Class B, Class C |
| Temp Rating | 90C, AL9CU |
| Hex Wrench Size | 0.3125 |
| Conductor Type | Copper, Aluminum |
| Al Conductor Max Amp | 1,215 |
| Ul Standard | B, UL 486A |
| Ul File No | E186991 |
| Package Quantity | 1 |
