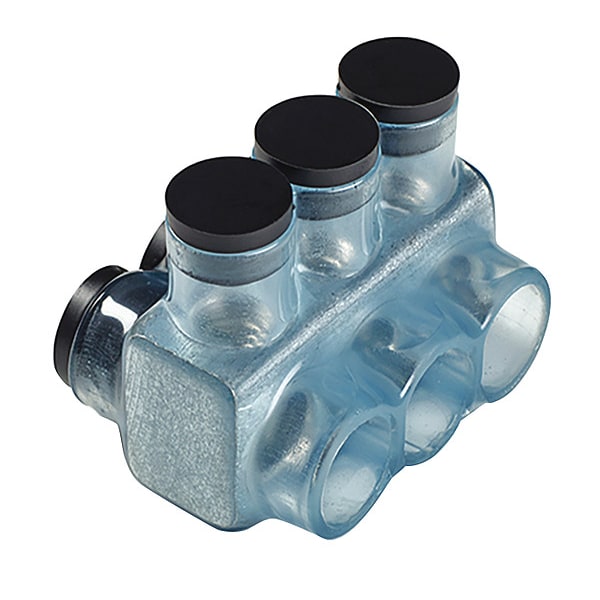

Conector Multi-Tap de Polaris, 3 puertos.
| Color | Clear |
|---|---|
| Min. Single Wire Size | 6 AWG |
| Max. Single Wire Size | 250 kcmil |
| Max. Voltage | 600V AC/DC |
| Height | 2-1/4 in |
| Width | 2.31 in |
| Application | Splice, Tap |
| Length | 2.99 in |
| Item | Insulated Multitap Connector |
| Standards | cULus, UL 486A, UL 486B |
| Insulation Material | Plastisol |
| Wire Type | Copper/Aluminum |
| Material | Aluminum |
| Number of Ports | 3 |
| Overall Length | 2.93 in |
| Connector Type | Double-Sided Entry |
| Finish | Plastisol |
| Direct Burial Rated | No |
| Min. Conductor Size | 6 AWG |
| Max. Conductor Size | 250 kcmil |
| No. of Ports | 3 |
| Body Material | Aluminum |
| Stud Size | 5/16 in |
| Head Style | Hex |
| Screw Material | Aluminum |
| Length (Straight Wireway) | 2.99 in |
| Tap Shape | Z |
| Compatible with Product Type | Copper and Aluminum Conductors |
| Overall Width | 2.28 in |
| Minimum Operating Temperature | -49 deg F |
| For Stranded Copper Wire Size - Maximum | 250 kcmil |
| Hex Size | 5/16 in |
| Torque | 360 in-lb |
| Strip Length | 1-3/8 in |
| For Stranded Copper Wire Size - Minimum | 6 AWG |
| Maximum Voltage | 600 V |
| RoHS Compliant | Yes |
| Special Features | Clear Design Allows for Optimal Conductor Placement and a More Secure Connection, Multiple Ul Listed Parallel Configurations Tested At Maximum Ampacities for Parallel Runs, Pre-Filled With Oxide Inhibitor to Prevent Corrosion and Provide a Low-Contact Resistance Connection, Removable Plugs Ensure Secure Entry Port Closure While Preventing Debris From Entering Connector, Smooth Exterior Finish and Rounded Corners Provide a More Comfortable Grip for Maximum Torque |
| For Conductor Material | Copper, Aluminum |
| Maximum Operating Temperature | 194 deg F |
| Current Rating | 230 A (AL); 290 A (CU) |
| Env Temp | Cold Temperature rated to -45C |
| Al Conductor Max Amp | 230 |
| Ul File No | E186991 |
| Wire Cable Class | Class B, Class C |
| Certifications | cULus |
| Assortment | Clear Coated Pre-Insulated Connectors |
| Ul Standard | UL 486 A/B |
| Hex Wrench Size | 0.3125 |
| Temp Rating | 90C, AL9CU |
| Conductors Count | 3 |
| Conductor Al Size Range | 250 MCM-6 AWG |
| Max Torque | 360 |
| Conductor Cu Size Range | 250 MCM-6 AWG |
| Conductor Type | Copper, Aluminum |
| Cu Conductor Max Amp | 290 |
| Package Quantity | 1 |
