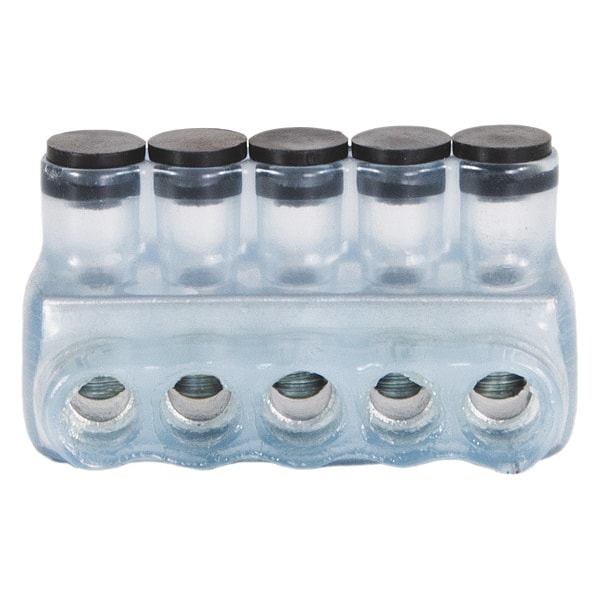

Conector Multi-Tap Polaris, 5 puertos
| Color | Clear |
|---|---|
| Min. Single Wire Size | 12 AWG |
| Max. Single Wire Size | 4 AWG |
| Max. Voltage | 600V AC/DC |
| Height | 1.2 in |
| Width | 1.18 in |
| Application | Splice, Tap |
| Length | 2.39 in |
| Item | Insulated Multitap Connector |
| Insulation Material | Plastisol |
| Standards | cULus, UL 486A, UL 486B |
| Wire Type | Copper/Aluminum |
| Connector Type | Single-Sided Entry |
| Overall Length | 2.39 in |
| Max. Temp. | 90°C |
| Material | Aluminum |
| Finish | Plastisol |
| Number of Ports | 5 |
| Head Style | Hex |
| Screw Material | Steel |
| Direct Burial Rated | No |
| No. of Ports | 5 |
| Min. Conductor Size | 14 AWG |
| Max. Conductor Size | 4 AWG |
| Stud Size | 1/8 in |
| Body Material | Aluminum |
| Length (Straight Wireway) | 2.39 in |
| RoHS Compliant | Yes |
| Maximum Operating Temperature | 194 deg F |
| For Stranded Copper Wire Size - Minimum | 14 AWG |
| Overall Width | 1.18 in |
| Special Features | Clear Design Allows for Optimal Conductor Placement and a More Secure Connection, Multiple Ul Listed Parallel Configurations Tested At Maximum Ampacities for Parallel Runs, Pre-Filled With Oxide Inhibitor to Prevent Corrosion and Provide a Low-Contact Resistance Connection, Removable Plugs Ensure Secure Entry Port Closure While Preventing Debris From Entering Connector, Smooth Exterior Finish and Rounded Corners Provide a More Comfortable Grip for Maximum Torque |
| Torque | 45 in-lb |
| Maximum Voltage | 600 V |
| For Stranded Copper Wire Size - Maximum | 4 AWG |
| Strip Length | 11/16 in |
| Hex Size | 1/8 in |
| Minimum Operating Temperature | -49 deg F |
| Compatible with Product Type | Copper and Aluminum Conductors |
| Tap Shape | L |
| For Conductor Material | Copper, Aluminum |
| Current Rating | 75 A (AL); 95 A (CU) |
| Conductors Count | 5 |
| Conductor Type | Copper, Aluminum |
| Conductor Al Size Range | 4-12 AWG |
| Al Conductor Max Amp | 75 |
| Hex Wrench Size | 0.125 |
| Conductor Cu Size Range | 4-14 AWG |
| Wire Cable Class | Class B, Class C |
| Assortment | Clear Coated Pre-Insulated Connectors |
| Env Temp | Cold Temperature rated to -45C |
| Ul Standard | UL 486 A/B |
| Cu Conductor Max Amp | 95 |
| Certifications | cULus |
| Ul File No | E186991 |
| Temp Rating | 90C, AL9CU |
| Max Torque | 35 |
| Package Quantity | 1 |
