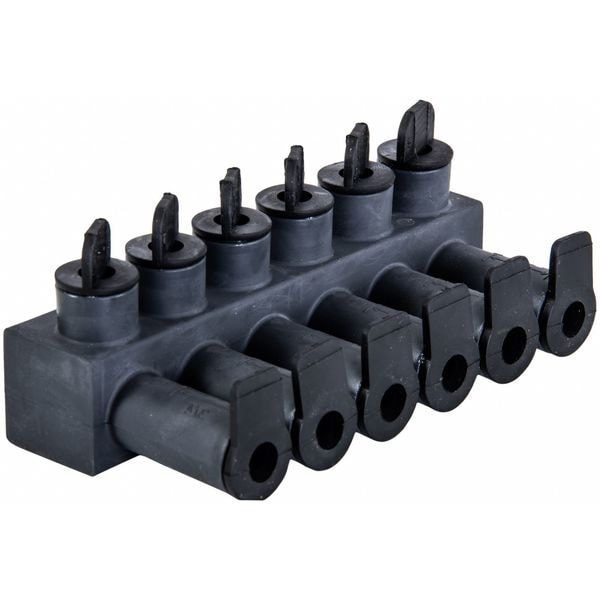

Conector de cables, aislado, calibre 14 AWG, 2/0 AWG.
| Color | Black |
|---|---|
| Application | Splice, Tap |
| Material | Aluminum |
| Number of Ports | 6 |
| Item | Wire Connector |
| Hex Size | 3/16 in |
| Body Material | Aluminum Alloy |
| UL 94 Flammability Rating | V-1 |
| Maximum Operating Temperature | 194 deg F |
| Maximum Voltage | 600 V |
| For Conductor Material | Copper, Aluminum |
| For Stranded Copper Wire Size - Maximum | 2/0 AWG |
| For Stranded Copper Wire Size - Minimum | 14 AWG |
| Head Style | Hex |
| RoHS Compliant | Yes |
| Standards | UL Listed 486DB Wire Connector ANSI C119.1 |
| Insulation Material | Santoprene |
| Finish | Insulated |
| Assortment | Pre-Insulated Connectors |
| Conductor Cu Size Range | 2/0 AWG – 14 AWG |
| Env Temp | Cold Temperature rated to -45C |
| Max Torque | 120 |
| Ul Standard | UL 486D |
| Al Conductor Max Amp | 150 |
| Hex Wrench Size | 0.1875 |
| Wire Cable Class | Class B, Class C |
| Cu Conductor Max Amp | 195 |
| Ul File No | E186991 |
| Certifications | cULus |
| Conductors Count | 6 |
| Temp Rating | 90C, AL9CU |
| Ansi | ANSI C119.4, C119.1 |
| Conductor Al Size Range | 2/0 AWG – 12 AWG |
| Conductor Type | Copper, Aluminum |
| Package Quantity | 1 |
