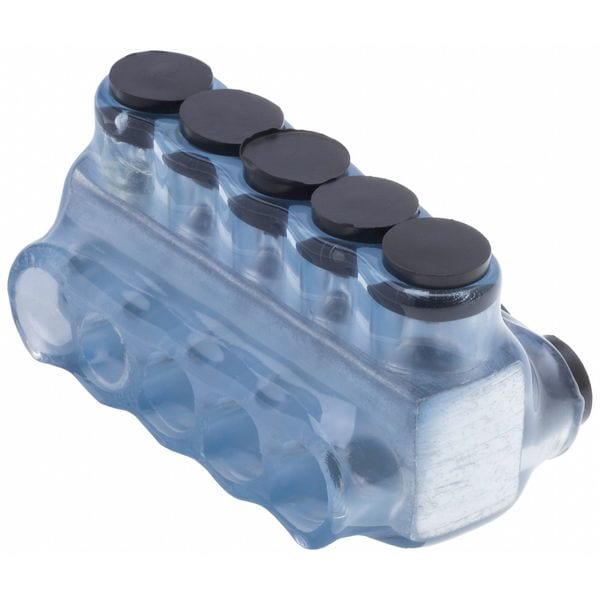

Wire Connector, Insulated, 14 AWG, 4 AWG
| Color | Clear |
|---|---|
| Application | Splice, Tap |
| Material | Aluminum |
| Item | Wire Connector |
| Number of Ports | 5 |
| Maximum Operating Temperature | 194 deg F |
| For Stranded Copper Wire Size - Maximum | 4 AWG |
| Maximum Voltage | 600 V |
| Body Material | Aluminum Alloy |
| For Stranded Copper Wire Size - Minimum | 14 AWG |
| RoHS Compliant | Yes |
| Head Style | Hex |
| Hex Size | 1/8 in |
| For Conductor Material | Copper, Aluminum |
| Insulation Material | Plastisol |
| Finish | Insulated |
| Standards | UL 746C 750 Degrees C Glow Wire, UL Listed 486A/B Wire Connector |
| Conductor Al Size Range | 4 AWG – 12 AWG |
| Certifications | cULus |
| Al Conductor Max Amp | 75 |
| Temp Rating | 90C, AL9CU |
| Wire Cable Class | Class B, Class C |
| Max Torque | 35 |
| Assortment | Clear Coated Pre-Insulated Connectors |
| Conductors Count | 5 |
| Conductor Type | Copper, Aluminum |
| Hex Wrench Size | 0.125 |
| Env Temp | Cold Temperature rated to -45C |
| Cu Conductor Max Amp | 95 |
| Ul File No | E186991 |
| Ul Standard | UL 486 A/B |
| Conductor Cu Size Range | 4 AWG – 14 AWG |
| Package Quantity | 1 |
