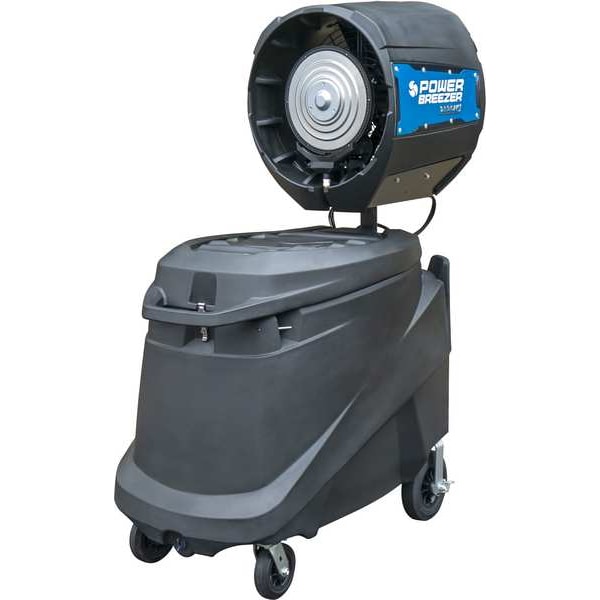

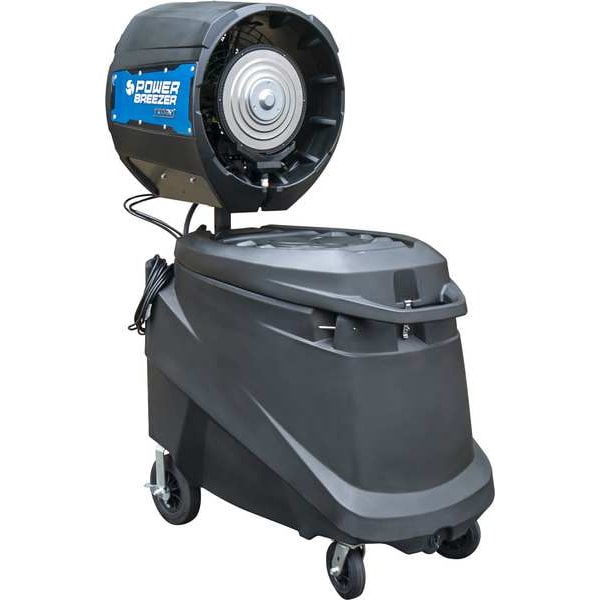

High Velocity Industrial Fan, 23 in Blade Dia, 110V
| Blade Diameter | 23 in |
|---|---|
| Number of Speeds | 8 |
| Voltage | 110V |
| Phase | 1 |
| Air Flow | at 10 ft. 19 mph; at 20 ft. 11 mph; at 40 ft. 6 mph |
| Drive Type | Direct Drive |
| Item | High Velocity Industrial Fan |
| Max. Depth | 54 in |
| Includes | Heavy Duty Locking Wheels and Casters |
| Housing Material | Polyethylene |
| Amps | 11 |
| Standards | ETL, MIL-STD 810H, NOM, OSHA |
| Environmental Applications | Agriculture, Commercial, Industrial |
| Height | 73-1/2 in |
| Width | 29-5/8 in |
| Hz | 50/60 |
| Power Cord Length | 25 ft |
| NEMA Plug Configuration - HVAC | 5-15P |
| Depth | 53-15/16 in |
| Water Capacity | 85 gal |
| HP | 1 hp |
| Air Speed @ 20 Feet | 11 mph |
| Cooling Capacity | 126,500 BtuH |
| Air Speed @ 10 Feet | 19 mph |
| Fan Cord Length | 25 ft |
| Motor hp | 1 HP |
| NEMA plug Configuration | 5-15p |
| Connection Type | GHT |
| Coverage Area - Minimum | 50 sq ft |
| Airflow | 7,800 cfm |
| For Location | Indoor/Outdoor |
| Water Consumption | 4 gph |
| Fill Type | Hose |
| Misting Distance - Maximum | 60 ft |
| Coverage Area - Maximum | 2,827 sq ft |
| Max. Amps | 11 A |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
