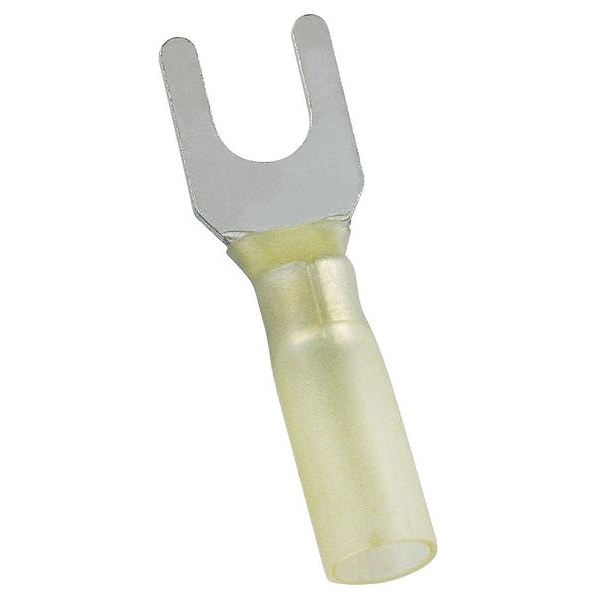

Terminal de horquilla termocontraíble para cable de 12-10 AWG con perno #8, paquete de 25 unidades.
| Wire Range | 12 to 10 AWG |
|---|---|
| Insulation Type | Heat Shrink |
| Stud Size | #8 |
| Insulation Color | Yellow |
| Connection Type | Crimp |
| Connection Material | Copper |
| Terminal Type | Standard |
| Terminal Connection | Crimp |
| Item | Fork Terminal |
| Seam | Brazed |
| Overall Length | 1.319 in |
| Max. Voltage | 600 V |
| Standards | UL/cUL Listed E96029 |
| Tongue Width - Wire Connector | 0.35 in |
| Max. Temp. | 221 deg F |
| Maximum Operating Temperature | 221 deg F |
| Terminal Shape | Standard |
| UL 94 Flammability Rating | HB |
| Barrel Style | Tubing Water Resistant |
| Tongue Length | 0.00 - 0.50 inches |
| Strip Length | 3/8 in |
| Tongue Thickness | 0.039 in |
| Compatible with Product Type | Insulated Stranded Copper Cable |
| Seam Style | Brazed |
| Contact Material | Copper |
| Tongue Width | 0.354 in |
| Maximum Wire Size | 10 AWG |
| Insulation Coverage | Partial Coverage |
| Minimum Wire Size | 12 AWG |
| Contact Finish | Tin |
| RoHS Compliant | Yes |
| Termination Style | Crimp and Heat Shrink |
| Special Features | Heat-Shrink Insulation Water Resistant |
| Maximum Voltage | 600 V |
| Package Quantity | 25 |
