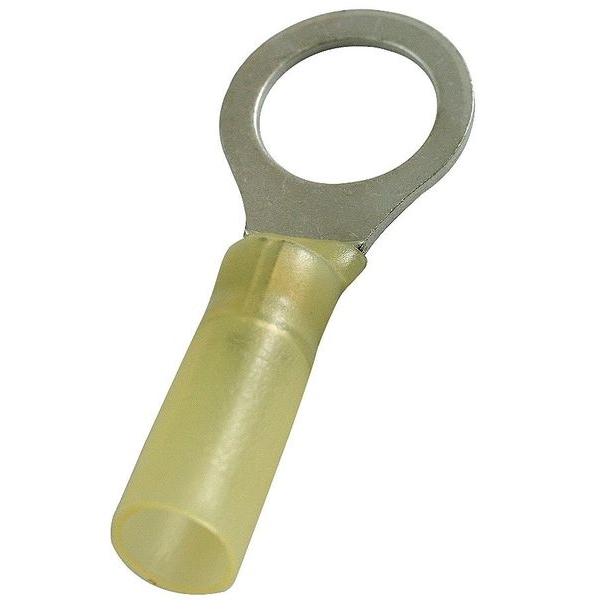

Terminal de anillo termoencogible para cable de calibre 12-10, con tornillo de 3/8", paquete de 25 unidades.
| Wire Range | 12 to 10 AWG |
|---|---|
| Insulation Type | Heat Shrink |
| Stud Size | 3/8 in |
| Insulation Color | Yellow |
| Terminal Connection | Crimp |
| Item | Ring Terminal |
| Connection Material | Copper |
| Max. Voltage | 600 V |
| Seam | Brazed |
| Max. Temp. | 221 deg F |
| Standards | UL/cUL Listed E96029 |
| Overall Length | 1.65 in |
| Tongue Width - Wire Connector | 0.59 in |
| Connection Type | Crimp |
| Terminal Type | Standard |
| RoHS Compliant | Yes |
| Barrel Style | Tubing Water Resistant |
| Maximum Operating Temperature | 221 deg F |
| Minimum Wire Size | 12 AWG |
| Hole Diameter | 0.41 in |
| Insulation Material | Polyolefin |
| Special Features | Heat-Shrink Insulation Water Resistant |
| Contact Material | Copper |
| Barrel Size | Standard |
| Minimum Operating Temperature | 221 deg F |
| Maximum Wire Size | 10 AWG |
| Insulation Coverage | Partial Coverage |
| Tongue Width | 0.59 in |
| Maximum Voltage | 600 V |
| Compatible with Product Type | Insulated Stranded Copper Cable |
| Tongue Thickness | 0.04 in |
| Terminal Shape | Ring Terminal |
| Strip Length | 3/8 in |
| Connection Orientation | Straight |
| Contact Finish | Tin |
| Seam Style | Brazed |
| UL 94 Flammability Rating | HB |
| Termination Style | Crimp |
| Package Quantity | 25 |
