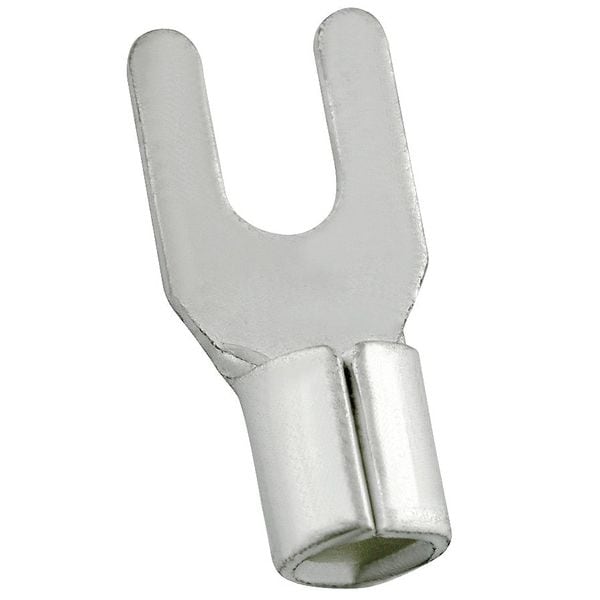

12-10 AWG Non-Insulated Fork Terminal #6 Stud PK50
| Wire Range | 12 to 10 AWG |
|---|---|
| Insulation Type | Non-Insulated |
| Stud Size | #6 |
| Insulation Color | Bare |
| Seam | Butted |
| Connection Type | Crimp |
| Item | Fork Terminal |
| Connection Material | Copper |
| Overall Length | 0.728 in |
| Max. Voltage | 600 V |
| Tongue Width - Wire Connector | 0.33 in |
| Standards | UL/cUL Listed E96029 |
| Terminal Connection | Crimp |
| Max. Temp. | 302 deg F |
| Terminal Type | Standard |
| Maximum Voltage | 600 V |
| Contact Finish | Tin |
| Seam Style | Butted |
| Tongue Length | 0.00 - 0.50 inches |
| Tongue Width | 0.327 in |
| RoHS Compliant | Yes |
| Maximum Wire Size | 10 AWG |
| Maximum Operating Temperature | 302 deg F |
| Insulation Coverage | None |
| Terminal Shape | Standard |
| Compatible with Product Type | Insulated Stranded Copper Cable |
| Tongue Thickness | 0.039 in |
| Barrel Style | Crimp |
| Minimum Wire Size | 12 AWG |
| Insulation Material | None |
| Strip Length | 3/8 in |
| Contact Material | Copper |
| Termination Style | Crimp |
| Barrel Length | 0.236 in |
| Package Quantity | 50 |
