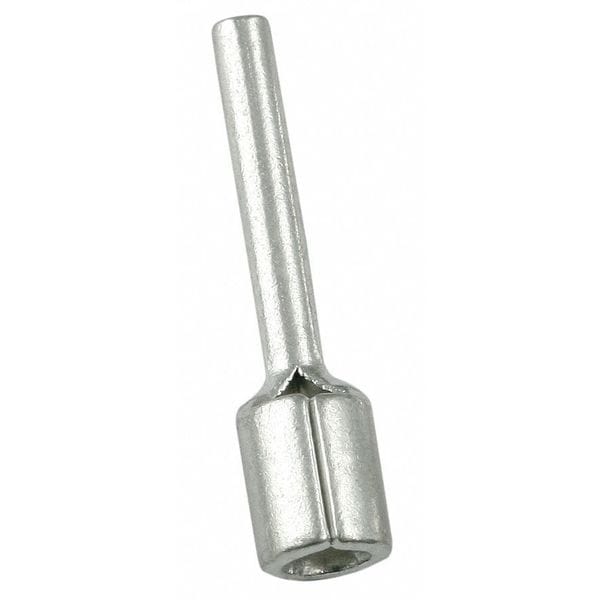

Terminal de clavija sin aislamiento de calibre 12-10 PK50.
| Wire Range | 12 to 10 AWG |
|---|---|
| Insulation Type | Non-Insulated |
| Insulation Color | Bare |
| Seam | Butted |
| Standards | UL/cUL Listed E96029 |
| Overall Length | 0.787 in |
| Max. Temp. | 302 deg F |
| Barrel Inside Dia. | 0.134 in |
| Terminal Connection | Crimp |
| Connection Material | Copper |
| Connection Type | Crimp |
| Max. Voltage | 600 V |
| Item | Pin Terminal |
| Terminal Type | Pin |
| Current | 50 A |
| Insulation Coverage | None |
| Barrel Style | Crimp |
| Seam Style | Brazed |
| Maximum Voltage | 600 V |
| Termination Style | Crimp |
| Maximum Wire Size | 10 AWG |
| Maximum Operating Temperature | 302 deg F |
| Contact Material | Copper |
| Contact Finish | Tin |
| Pin Diameter | 0.11 in |
| For Conductor Type | Solid Copper, Stranded |
| Pin Length | 0.551 in |
| Special Features | Suitable for Limited Space Applications |
| Minimum Wire Size | 12 AWG |
| Barrel Length | 0.236 in |
| Insulation Material | None |
| RoHS Compliant | Yes |
| Barrel Outside Diameter | 0.22 in |
| Barrel Inside Diameter | 0.134 in |
| Compatible with Product Type | Insulated Stranded Copper Cable |
| Package Quantity | 50 |
