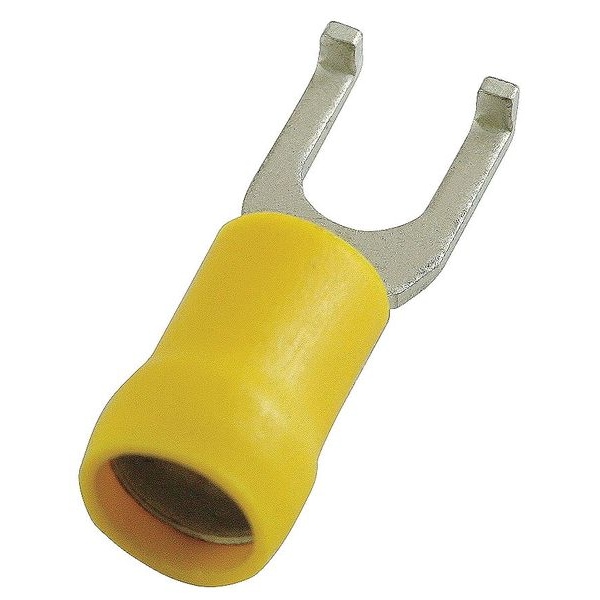

Terminal de lengüeta con brida de vinil para cable de calibre 12-10, con perno #6, paquete de 50.
| Wire Range | 12 to 10 AWG |
|---|---|
| Insulation Type | Vinyl |
| Stud Size | #6 |
| Insulation Color | Yellow |
| Max. Voltage | 600 V |
| Standards | UL/cUL Listed E96029 |
| Connection Type | Crimp |
| Overall Length | 1.083 in |
| Item | Fork Terminal |
| Max. Temp. | 221 deg F |
| Terminal Connection | Crimp |
| Terminal Type | Flanged |
| Seam | Butted |
| Features | Plus Copper Sleeve |
| Connection Material | Copper |
| Tongue Width - Wire Connector | 0.34 in |
| Contact Material | Copper |
| Contact Finish | Tin |
| Maximum Wire Size | 10 AWG |
| Tongue Length | 0.51 - 1.00 inches |
| Seam Style | Butted |
| UL 94 Flammability Rating | V-0 |
| Special Features | Extra Copper Sleeve on Barrel |
| Strip Length | 3/8 in |
| Barrel Style | Extra Copper Sleeve on Barrel |
| Termination Style | Crimp |
| Insulation Material | Vinyl |
| Maximum Voltage | 600 V |
| Barrel Length | 0.531 in |
| Tongue Width | 0.335 in |
| Maximum Operating Temperature | 221 deg F |
| Terminal Shape | Fork |
| Compatible with Product Type | Insulated Stranded Copper Cable |
| RoHS Compliant | Yes |
| Insulation Coverage | Partial Coverage |
| Minimum Wire Size | 12 AWG |
| Tongue Thickness | 0.039 in |
| Package Quantity | 50 |
