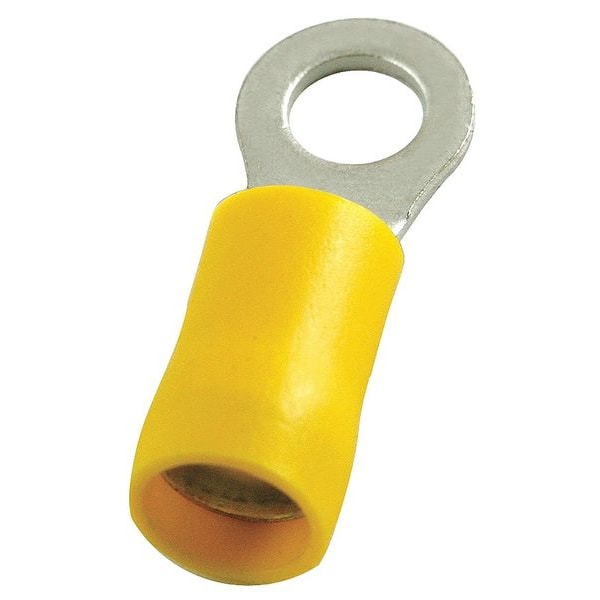

Terminal de anillo de vinilo de 12-10 AWG con perno de 1/2" paquete de 50
| Wire Range | 12 to 10 AWG |
|---|---|
| Insulation Type | Vinyl |
| Stud Size | 1/2 in |
| Insulation Color | Yellow |
| Connection Type | Crimp |
| Tongue Width - Wire Connector | 0.76 in |
| Terminal Connection | Crimp |
| Item | Ring Terminal |
| Max. Voltage | 600 V |
| Connection Material | Copper |
| Seam | Butted |
| Max. Temp. | 221 deg F |
| Standards | UL/cUL Listed E96029 |
| Terminal Type | Double Crimp Insulated |
| Overall Length | 1.54 in |
| Compatible with Product Type | Insulated Stranded Copper Cable |
| Barrel Length | 0.53 in |
| Minimum Wire Size | 12 AWG |
| Termination Style | Crimp |
| UL 94 Flammability Rating | V-0 |
| Minimum Operating Temperature | 221 deg F |
| Maximum Operating Temperature | 221 deg F |
| Tongue Width | 0.76 in |
| Barrel Inside Diameter | 0.13 in |
| Maximum Voltage | 600 V |
| Seam Style | Butted |
| Tongue Length | 1.01 in |
| RoHS Compliant | Yes |
| Tongue Thickness | 0.04 in |
| Insulation Material | Vinyl |
| Special Features | Extra Copper Sleeve on Barrel |
| Insulation Coverage | Partial Coverage |
| Hole Diameter | 0.51 in |
| Terminal Shape | Ring Terminal |
| Barrel Style | Extra Copper Sleeve on Barrel |
| Contact Material | Copper |
| Contact Finish | Tin |
| Strip Length | 3/8 in |
| Barrel Outside Diameter | 0.27 in |
| Connection Orientation | Straight |
| Barrel Size | Standard |
| Maximum Wire Size | 10 AWG |
| Package Quantity | 50 |
