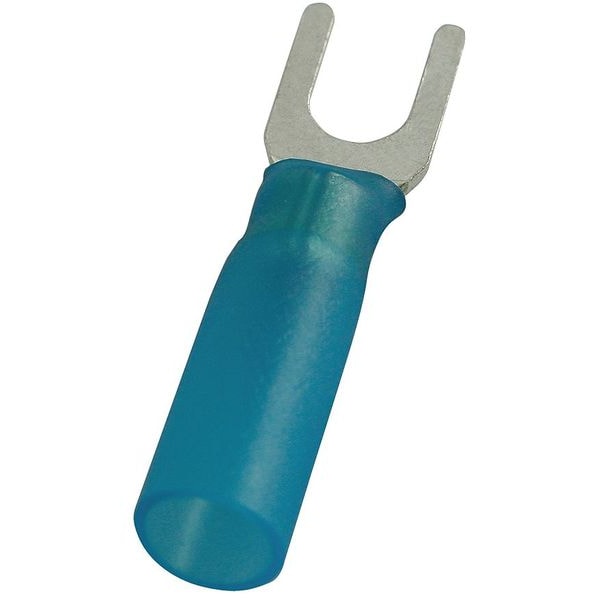

Terminal de horquilla termocontraíble de 16-14 AWG para perno de tamaño #8, paquete de 25 unidades.
| Wire Range | 16 to 14 AWG |
|---|---|
| Insulation Type | Heat Shrink |
| Stud Size | #8 |
| Insulation Color | Blue |
| Max. Voltage | 600 V |
| Terminal Connection | Crimp |
| Max. Temp. | 221 deg F |
| Connection Material | Copper |
| Overall Length | 1.161 in |
| Standards | UL/cUL Listed E96029 |
| Terminal Type | Standard |
| Item | Fork Terminal |
| Tongue Width - Wire Connector | 0.28 in |
| Connection Type | Crimp |
| Seam | Brazed |
| RoHS Compliant | Yes |
| UL 94 Flammability Rating | HB |
| Insulation Coverage | Partial Coverage |
| Tongue Width | 0.283 in |
| Contact Finish | Tin |
| Terminal Shape | Standard |
| Maximum Operating Temperature | 221 deg F |
| Minimum Wire Size | 16 AWG |
| Tongue Thickness | 0.031 in |
| Compatible with Product Type | Insulated Stranded Copper Cable |
| Special Features | Heat-Shrink Insulation Water Resistant |
| Contact Material | Copper |
| Maximum Voltage | 600 V |
| Seam Style | Brazed |
| Barrel Style | Tubing Water Resistant |
| Maximum Wire Size | 14 AWG |
| Termination Style | Crimp and Heat Shrink |
| Strip Length | 1/4 in |
| Tongue Length | 0.00 - 0.50 inches |
| Package Quantity | 25 |
