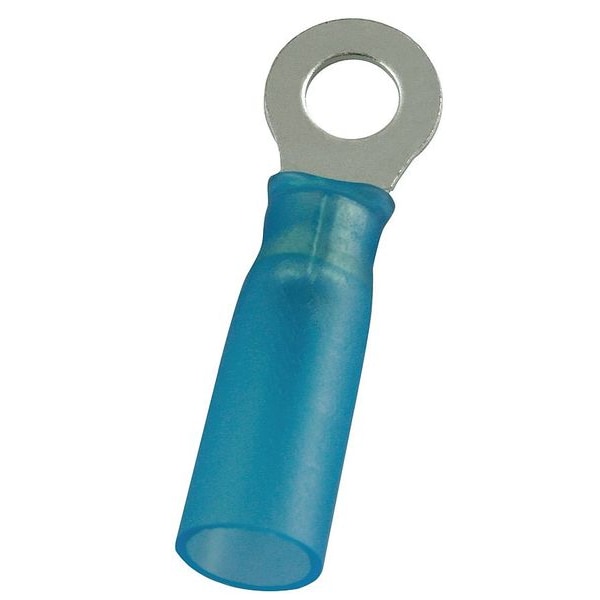

Terminal en anillo termocontraíble para cable de calibre 16-14, tamaño de tornillo #10, paquete con 25 unidades.
| Wire Range | 16 to 14 AWG |
|---|---|
| Insulation Type | Heat Shrink |
| Stud Size | #10 |
| Insulation Color | Blue |
| Overall Length | 1.2 in |
| Seam | Brazed |
| Connection Material | Copper |
| Connection Type | Crimp |
| Terminal Connection | Crimp |
| Max. Temp. | 221 deg F |
| Max. Voltage | 600 V |
| Tongue Width - Wire Connector | 0.37 in |
| Standards | UL/cUL Listed E96029 |
| Terminal Type | Standard |
| Item | Ring Terminal |
| RoHS Compliant | Yes |
| Connection Orientation | Straight |
| Tongue Width | 0.37 in |
| Compatible with Product Type | Insulated Stranded Copper Cable |
| Maximum Voltage | 600 V |
| Maximum Operating Temperature | 221 deg F |
| Insulation Material | Polyolefin |
| UL 94 Flammability Rating | HB |
| Contact Finish | Tin |
| Maximum Wire Size | 14 AWG |
| Barrel Style | Tubing Water Resistant |
| Insulation Coverage | Partial Coverage |
| Contact Material | Copper |
| Termination Style | Crimp |
| Terminal Shape | Ring Terminal |
| Special Features | Heat-Shrink Insulation Water Resistant |
| Hole Diameter | 0.21 in |
| Minimum Wire Size | 16 AWG |
| Tongue Thickness | 0.03 in |
| Barrel Size | Standard |
| Strip Length | 1/4 in |
| Minimum Operating Temperature | 221 deg F |
| Seam Style | Brazed |
| Package Quantity | 25 |
