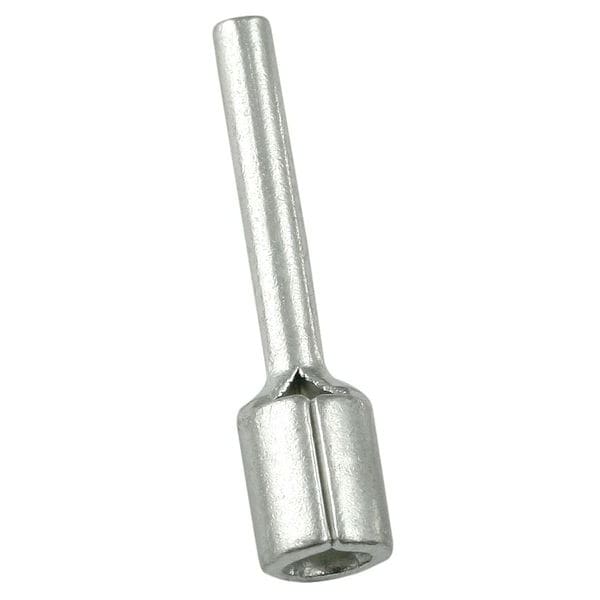

16-14 AWG Non-Insulated Pin Terminal PK100
| Wire Range | 16 to 14 AWG |
|---|---|
| Insulation Type | Non-Insulated |
| Insulation Color | Bare |
| Max. Temp. | 302 deg F |
| Seam | Butted |
| Barrel Inside Dia. | 0.091 in |
| Item | Pin Terminal |
| Max. Voltage | 600 V |
| Terminal Connection | Crimp |
| Features | 0.031 in Thickness, 0.189 in Barrel L, 0.661 in L |
| Standards | UL/cUL Listed E96029 |
| Overall Length | 0.661 in |
| Connection Type | Crimp |
| Connection Material | Copper |
| Terminal Type | Pin |
| Maximum Operating Temperature | 302 deg F |
| Contact Finish | Tin |
| Maximum Wire Size | 14 AWG |
| Minimum Wire Size | 16 AWG |
| Barrel Inside Diameter | 0.091 in |
| Barrel Length | 0.189 in |
| Compatible with Product Type | Insulated Stranded Copper Cable |
| Maximum Voltage | 600 V |
| Termination Style | Crimp |
| Pin Diameter | 0.075 in |
| Barrel Style | Crimp |
| RoHS Compliant | Yes |
| Contact Material | Copper |
| Current | 30 A |
| Insulation Coverage | None |
| Barrel Outside Diameter | 0.161 in |
| Special Features | Suitable for Limited Space Applications |
| Seam Style | Brazed |
| Insulation Material | None |
| Pin Length | 0.472 in |
| For Conductor Type | Solid Copper, Stranded |
| Package Quantity | 100 |
