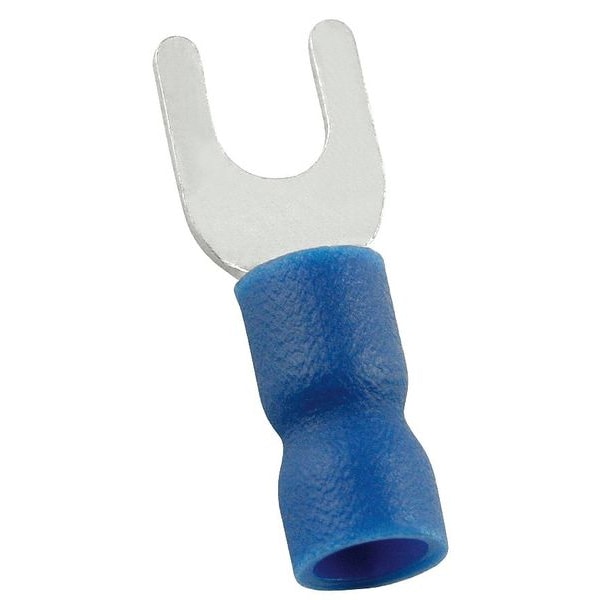

Terminal de bloque de vinilo para horquilla de calibre 16-14 con terminal de tornillo #10, paquete de 100 unidades.
| Wire Range | 16 to 14 AWG |
|---|---|
| Insulation Type | Vinyl |
| Stud Size | #10 |
| Insulation Color | Blue |
| Standards | UL/cUL Listed E96029 |
| Connection Type | Crimp |
| Terminal Type | Standard |
| Max. Temp. | 221 deg F |
| Connection Material | Copper |
| Seam | Butted |
| Terminal Connection | Crimp |
| Item | Fork Terminal |
| Overall Length | 0.886 in |
| Tongue Width - Wire Connector | 0.37 in |
| Max. Voltage | 600 V |
| Insulation Material | Vinyl |
| UL 94 Flammability Rating | V-0 |
| Strip Length | 1/4 in |
| Tongue Thickness | 0.031 in |
| Termination Style | Crimp |
| Contact Finish | Tin |
| Seam Style | Butted |
| Tongue Length | 0.00 - 0.50 inches |
| Barrel Length | 0.453 in |
| Minimum Wire Size | 16 AWG |
| Compatible with Product Type | Insulated Stranded Copper Cable |
| Insulation Coverage | Partial Coverage |
| Maximum Wire Size | 14 AWG |
| Maximum Voltage | 600 V |
| RoHS Compliant | Yes |
| Contact Material | Copper |
| Terminal Shape | Standard |
| Tongue Width | 0.366 in |
| Barrel Style | Easy Entry |
| Maximum Operating Temperature | 221 deg F |
| Package Quantity | 100 |
