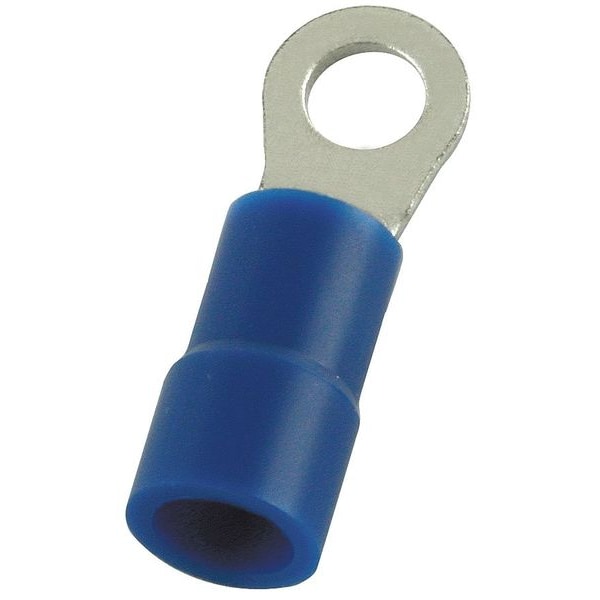

Terminal de anillo de vinilo AWG 16-14 con espárrago #6, paquete de 100 unidades.
| Wire Range | 16 to 14 AWG |
|---|---|
| Insulation Type | Vinyl |
| Stud Size | #6 |
| Insulation Color | Blue |
| Tongue Width - Wire Connector | 0.26 in |
| Standards | UL/cUL Listed E96029 |
| Item | Ring Terminal |
| Terminal Connection | Crimp |
| Overall Length | 0.8 in |
| Terminal Type | Standard |
| Seam | Butted |
| Max. Voltage | 600 V |
| Connection Material | Copper |
| Connection Type | Crimp |
| Max. Temp. | 221 deg F |
| Barrel Inside Diameter | 0.09 in |
| Minimum Wire Size | 16 AWG |
| Insulation Material | Vinyl |
| RoHS Compliant | Yes |
| Termination Style | Crimp |
| Seam Style | Butted |
| Insulation Coverage | Partial Coverage |
| Maximum Wire Size | 14 AWG |
| Contact Finish | Tin |
| Barrel Size | Standard |
| Compatible with Product Type | Insulated Stranded Copper Cable |
| Contact Material | Copper |
| Barrel Length | 0.43 in |
| Tongue Length | 0.37 in |
| Tongue Width | 0.26 in |
| Connection Orientation | Straight |
| Minimum Operating Temperature | 221 deg F |
| Maximum Voltage | 600 V |
| Special Features | Molded Vinyl Insulation Easy Entry |
| UL 94 Flammability Rating | V-0 |
| Maximum Operating Temperature | 221 deg F |
| Barrel Style | Easy Entry |
| Tongue Thickness | 0.03 in |
| Barrel Outside Diameter | 0.18 in |
| Hole Diameter | 0.15 in |
| Strip Length | 1/4 in |
| Terminal Shape | Ring Terminal |
| Package Quantity | 100 |
