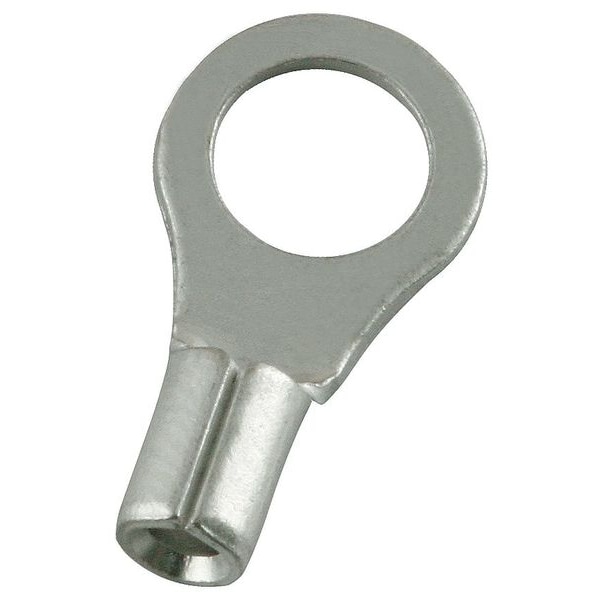

Terminal de anillo no aislado de calibre 22-16 para perno de tamaño #10, paquete de 100 unidades.
| Wire Range | 22 to 16 AWG |
|---|---|
| Insulation Type | Non-Insulated |
| Stud Size | #10 |
| Insulation Color | Bare |
| Terminal Type | Standard |
| Terminal Connection | Crimp |
| Connection Material | Copper |
| Standards | UL/cUL Listed E96029 |
| Overall Length | 0.62 in |
| Max. Voltage | 600 V |
| Item | Ring Terminal |
| Connection Type | Crimp |
| Seam | Butted |
| Max. Temp. | 257 deg F |
| Tongue Width - Wire Connector | 0.31 in |
| Contact Material | Copper |
| Hole Diameter | 0.21 in |
| Insulation Material | None |
| Minimum Wire Size | 22 AWG |
| Barrel Inside Diameter | 0.07 in |
| Strip Length | 1/4 in |
| Barrel Length | 0.19 in |
| Seam Style | Butted |
| Minimum Operating Temperature | 257 deg F |
| RoHS Compliant | Yes |
| Insulation Coverage | None |
| Maximum Operating Temperature | 302 deg F |
| Connection Orientation | Straight |
| Contact Finish | Tin |
| Barrel Outside Diameter | 0.13 in |
| Tongue Thickness | 0.03 in |
| Maximum Wire Size | 16 AWG |
| Tongue Length | 0.43 in |
| Termination Style | Crimp |
| Compatible with Product Type | Insulated Stranded Copper Cable |
| Barrel Style | Crimp |
| Barrel Size | Standard |
| Maximum Voltage | 600 V |
| Tongue Width | 0.32 in |
| Terminal Shape | Ring Terminal |
| Package Quantity | 100 |
