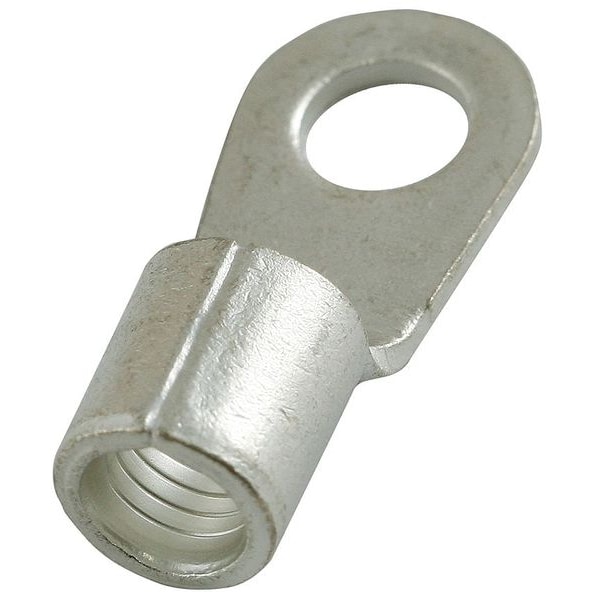

Terminal de anillo no aislado calibre 6 AWG con perno de 3/8", paquete de 20 unidades.
| Wire Range | 6 AWG |
|---|---|
| Insulation Type | Non-Insulated |
| Stud Size | 3/8 in |
| Insulation Color | Bare |
| Connection Material | Copper |
| Standards | UL/cUL Listed E96029 |
| Item | Ring Terminal |
| Overall Length | 1.28 in |
| Max. Voltage | 600 V |
| Terminal Connection | Crimp |
| Seam | Brazed |
| Terminal Type | Standard |
| Connection Type | Crimp |
| Tongue Width - Wire Connector | 0.63 in |
| Max. Temp. | 105 deg C |
| Maximum Wire Size | 6 AWG |
| Connection Orientation | Straight |
| Termination Style | Crimp |
| Tongue Length | 0.87 in |
| Minimum Wire Size | 6 AWG |
| RoHS Compliant | Yes |
| Strip Length | 1/2 in |
| Barrel Outside Diameter | 0.35 in |
| Insulation Coverage | None |
| Barrel Style | Crimp |
| Tongue Thickness | 0.06 in |
| Barrel Size | Standard |
| Tongue Width | 0.63 in |
| Insulation Material | None |
| Hole Diameter | 0.41 in |
| Seam Style | Brazed |
| Barrel Length | 0.41 in |
| Contact Material | Copper |
| Compatible with Product Type | Insulated Stranded Copper Cable |
| Minimum Operating Temperature | 221 deg F |
| Terminal Shape | Ring Terminal |
| Maximum Voltage | 600 V |
| Contact Finish | Tin |
| Barrel Inside Diameter | 0.23 in |
| Maximum Operating Temperature | 302 deg F |
| Package Quantity | 20 |
