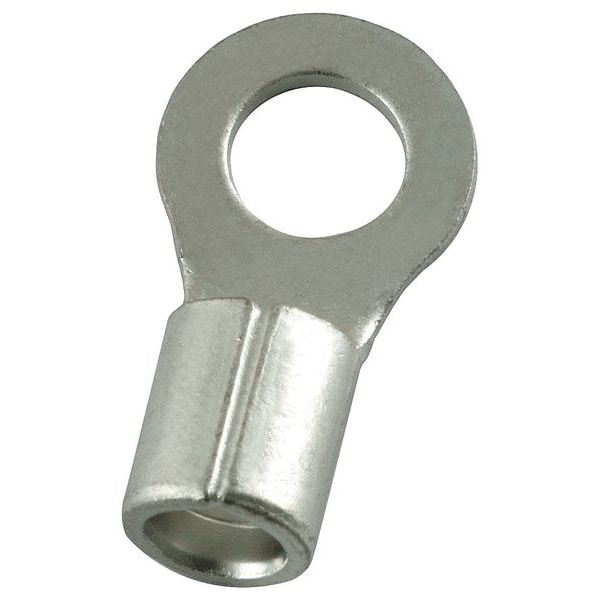

Terminal anular no aislado de calibre 8 AWG para tornillo de 1/4", paquete de 25 unidades.
| Wire Range | 8 AWG |
|---|---|
| Insulation Type | Non-Insulated |
| Stud Size | 1/4 in |
| Insulation Color | Bare |
| Connection Type | Crimp |
| Terminal Connection | Crimp |
| Terminal Type | Standard |
| Item | Ring Terminal |
| Max. Temp. | 257 deg F |
| Tongue Width - Wire Connector | 0.47 in |
| Connection Material | Copper |
| Max. Voltage | 600 V |
| Seam | Brazed |
| Standards | UL/cUL Listed E96029 |
| Overall Length | 0.94 in |
| Maximum Voltage | 600 V |
| Seam Style | Brazed |
| Insulation Material | None |
| Barrel Inside Diameter | 0.18 in |
| Tongue Thickness | 0.47 in |
| Tongue Length | 0.6 in |
| Barrel Size | Standard |
| Hole Diameter | 1/4 in |
| Tongue Width | 0.47 in |
| Minimum Operating Temperature | 257 deg F |
| Barrel Outside Diameter | 0.28 in |
| RoHS Compliant | Yes |
| Maximum Operating Temperature | 302 deg F |
| Termination Style | Crimp |
| Contact Finish | Tin |
| Minimum Wire Size | 8 AWG |
| Compatible with Product Type | Insulated Stranded Copper Cable |
| Terminal Shape | Ring Terminal |
| Strip Length | 1/2 in |
| Barrel Length | 0.34 in |
| Barrel Style | Crimp |
| Connection Orientation | Straight |
| Contact Material | Copper |
| Insulation Coverage | None |
| Maximum Wire Size | 8 AWG |
| Package Quantity | 25 |
