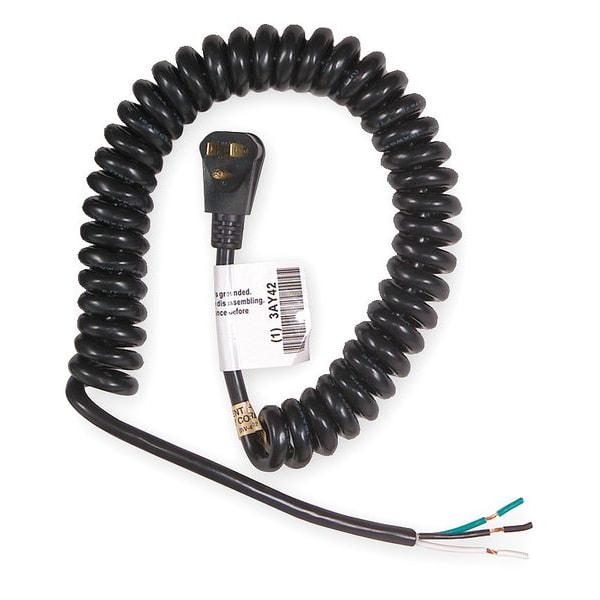

Coiled Power Cord, 5-15P, SJT, 20 ft., 13A, 16/3
| Item | Coiled Power Cord |
|---|---|
| Cord Length | 20 ft |
| Voltage | 125V AC |
| Plug Configuration | NEMA 5-15P |
| Connection Type | Bare Leads |
| Jacket Material | PVC |
| Jacket Color | Black |
| Wire Size | 16 AWG |
| Number of Conductors | 3 |
| Connector End - Wire and Cable | Bare |
| Standards | C-UL, OSHA, UL |
| Wire and Cable Item | Coiled Power Cord |
| Max. Amps | 13 |
| Description/Special Features | Extended Length 20', Retracted Length 6' |
| Shape | Coil |
| Max. Cord Temp. | 167 Degrees F |
| Gauge/Conductor - Wire and Cable | 16/3 |
| Connector End | Bare |
| Temp. Range | 32 to 167 deg F |
| Gauge/Conductor | 5.3333 |
| NEMA Plug Configuration | 5-15P |
| NEC Cord Designation | SJT |
| Nominal Outside Dia. | 0.34 in |
| Jacket Material - Wire and Cable | PVC |
| Gauge/Conductor (Wire and Cable) | 5.3333 |
| Jacket Material (Wire and Cable) | PVC |
| Connector End (Wire and Cable) | Bare |
| Trade Designation | SJT |
| Cord Shape | Coil |
| Special Features | Extended Length 20 Feet, Retracted Length 6 Feet |
| Temp. Rating | 32 to 167 deg F |
| Package Quantity | 1 |
