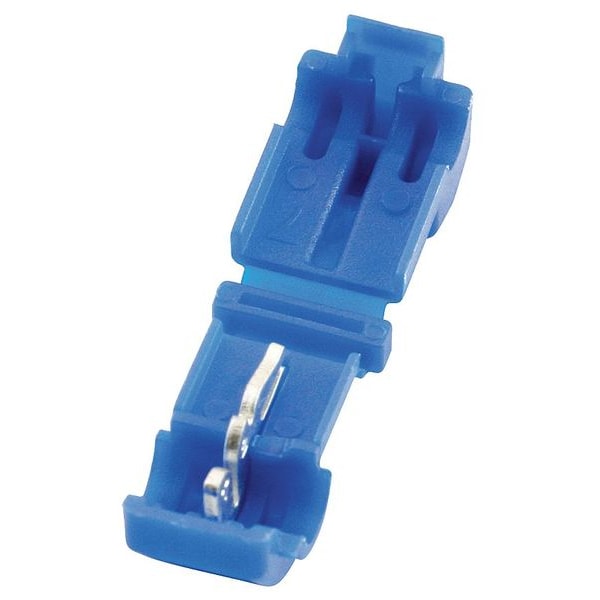

Displacement Connector, 18-14 AWG, PK50
| Color | Blue |
|---|---|
| Max. Voltage | 600 V |
| Application | Dry Environment |
| Wire Type | Electrical |
| Insulation Material | Nylon |
| Wire Range (Run) | 18 to 14 AWG |
| Flame Retardant | Yes |
| Max. Insulation Dia. | 3.81 mm |
| Item | Insulation Displacement Connector |
| Wire Range (Tap) | 18 to 14 AWG |
| Max. Temp. | 221 deg F |
| Fill Material | No Fill |
| Connector Type | T Tap |
| Standards | UL/cUL Listed E96029 |
| Number of Ports | 1 |
| Includes | Not Applicable |
| Resistance Properties | Not Applicable |
| Minimum Run Wire Size | 18 AWG |
| Contact Material | Brass |
| Maximum Tap Wire Size | 14 AWG |
| Maximum Tap Wire Insulation Diameter | Not Applicable |
| Minimum Operating Temperature | Not Applicable |
| Compatible Installation Tool Model Number | Not Applicable |
| Contact Finish | Tin |
| RoHS Compliant | Yes |
| Minimum Tap Wire Size | 18 AWG |
| Maximum Run Wire Insulation Diameter | Not Applicable |
| Maximum Operating Temperature | 221 deg F |
| Compatible with Product Type | Insulated Stranded Copper Cable |
| Maximum Run Wire Size | 14 AWG |
| UL 94 Flammability Rating | V-2 |
| Maximum Tap Conductors | 1 |
| Maximum Voltage | 600 V |
| Maximum Insulation Diameter | 0.138 mm |
| Maximum Run Conductors | Not Applicable |
| Special Features | Insulation Displacement Connector is Designed to Electrically Join a Tap Wire to a Through-Run Wire |
| Package Quantity | 50 |
