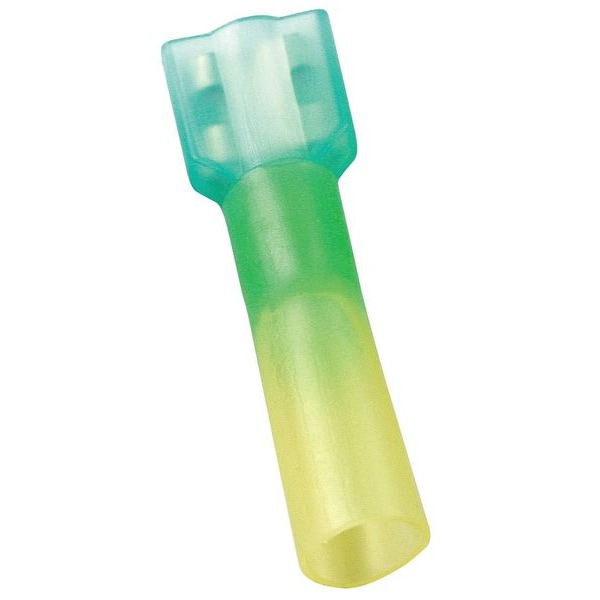

Desconexión hembra, azul, calibre 16-14, paquete con 25 unidades.
| Item | Female Disconnect |
|---|---|
| Insulation | Full |
| Insulation Color | Blue |
| Insulation Type | Heat Shrink |
| Connection Type | Crimp |
| Wire Range | 16 to 14 AWG |
| Tab Size | 0.032 in x 0.250 in |
| Overall Length | 1.437 in |
| Seam | Butted |
| Max. Voltage | 300 V |
| Max. Temp. | 221 deg F |
| Barrel Inside Dia. | 0.091 in |
| Connection Material | Brass |
| Standards | UL/cUL Listed |
| Tab Thickness | 0.032 in |
| Strip Length | 1/4 in |
| Barrel Style | Crimp |
| Maximum Wire Size | 14 AWG |
| UL 94 Flammability Rating | HB |
| Maximum Voltage | 600 V |
| Disconnect Style | Tab |
| Insulation Coverage | Full Coverage |
| Barrel Outside Diameter | 0.256 in |
| Maximum Operating Temperature | 221 deg F |
| Barrel Size | Standard |
| Minimum Wire Size | 16 AWG |
| Barrel Inside Diameter | 0.091 in |
| Contact Material | Brass |
| Terminal Type | Socket |
| Current | 15 A |
| Contact Finish | Tin |
| Termination Style | Crimp |
| Tab Width | 1/4 in |
| Connection Orientation | Straight |
| RoHS Compliant | Yes |
| Insulation Material | Polyolefin |
| Seam Style | Butted |
| Package Quantity | 25 |
