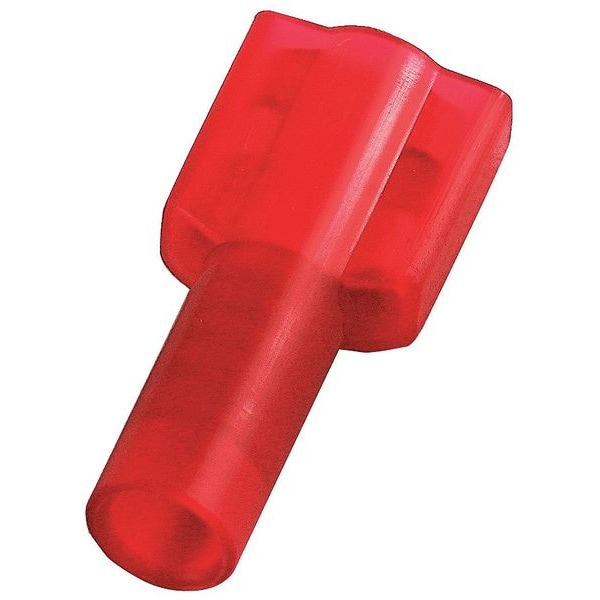

Desconexión hembra, roja, 22-16AWG, paquete de 100.
| Item | Female Disconnect with Copper Sleeve |
|---|---|
| Insulation | Full |
| Insulation Color | Red |
| Connection Type | Crimp |
| Insulation Type | Nylon |
| Wire Range | 22 to 16 AWG |
| Tab Size | 0.020 in x 0.187 in |
| Overall Length | 0.795 in |
| Seam | Butted |
| Max. Voltage | 600 V |
| Max. Temp. | 221 deg F |
| Barrel Inside Dia. | 0.157 in |
| Standards | UL/cUL Listed |
| Connection Material | Tin-Plated Brass |
| Tab Width | 0.187 in |
| Barrel Size | Standard |
| Tab Thickness | 0.02 in |
| Minimum Wire Size | 22 AWG |
| Strip Length | 1/4 in |
| Connection Orientation | Straight |
| Insulation Material | Nylon |
| Maximum Voltage | 600 V |
| Insulation Coverage | Full Coverage |
| Contact Material | Brass |
| Disconnect Style | Tab |
| Barrel Outside Diameter | 0.157 in |
| Seam Style | Butted |
| UL 94 Flammability Rating | V-2 |
| Contact Finish | Tin |
| Terminal Type | Socket |
| Maximum Operating Temperature | 221 deg F |
| RoHS Compliant | Yes |
| Barrel Style | Crimp |
| Current | 10 A |
| Termination Style | Crimp |
| Barrel Inside Diameter | 0.067 in |
| Maximum Wire Size | 16 AWG |
| Package Quantity | 100 |
