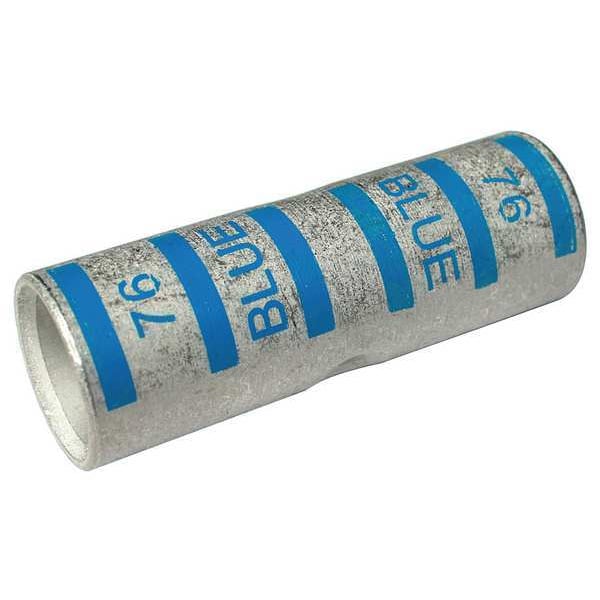

Long Barrel Splice, 3.79 in. L, Blue
| Item | Long-Barrel Splice |
|---|---|
| Material | Copper |
| Length | 3.79 in |
| Color Code | Blue |
| Overall Length | 3.79 in |
| Outside Dia. | 0.96 in |
| Wire Gauge | 400 kcmil |
| Die Code | 76 |
| Standards | ANSI, UL 486A-486B |
| Length (Straight Wireway) | 3.79 in |
| Maximum Operating Temperature | 300 deg F |
| For Wire Type | Stranded |
| Contact Finish | Tin |
| Barrel Inside Diameter | 0.79 in |
| Maximum Voltage | 600 V |
| For Conductor Material | Copper |
| Termination Style | Crimp |
| RoHS Compliant | Yes |
| Minimum Wire Size | 400 kcmil |
| Barrel Size | Long |
| Strip Length | 1-29/32 in |
| Maximum Conductors | 1 |
| Seam Style | Seamless |
| Maximum Wire Size | 400 kcmil |
| Barrel Finish | Tin Plated |
| Contact Material | Copper |
| Barrel Outside Diameter | 0.96 in |
| Number of Crimps | 8 |
| Special Features | Low Installed Cost, Provide a Low-Resistance Connection of High Quality |
| Maximum Wire Insulation Diameter | 0.96 in |
| Package Quantity | 1 |
