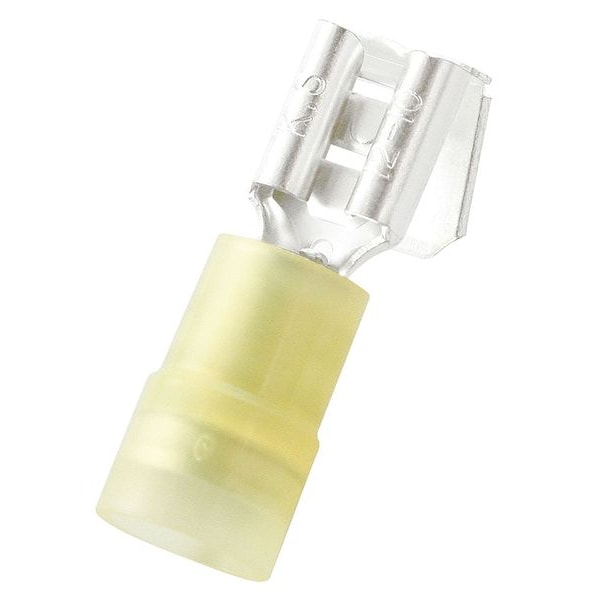

Desconexión en paralelo, amarillo, 12-10AWG, paquete de 50
| Item | Piggyback Disconnect |
|---|---|
| Insulation | Partial |
| Insulation Color | Yellow |
| Insulation Type | Nylon |
| Connection Type | Crimp |
| Wire Range | 12 to 10 AWG |
| Tab Size | 0.032 in x 0.250 in |
| Overall Length | 0.945 in |
| Seam | Butted |
| Max. Voltage | 600 V |
| Max. Temp. | 221 deg F |
| Standards | UL/cUL Listed |
| Barrel Inside Dia. | 0.256 in |
| Connection Material | Brass |
| Maximum Wire Size | 10 AWG |
| Contact Finish | Tin |
| Maximum Operating Temperature | 221 deg F |
| Barrel Size | Standard |
| Contact Material | Brass |
| Barrel Outside Diameter | 0.256 in |
| Tab Width | 1/4 in |
| UL 94 Flammability Rating | V-2 |
| Insulation Material | Nylon |
| Termination Style | Crimp |
| Barrel Style | Crimp |
| Terminal Type | Socket, Tab |
| Minimum Wire Size | 12 AWG |
| Disconnect Style | Piggyback |
| Connection Orientation | Straight |
| Maximum Voltage | 600 V |
| Insulation Coverage | Partial Coverage |
| Barrel Inside Diameter | 0.134 in |
| Seam Style | Butted |
| Strip Length | 3/8 in |
| Tab Thickness | 0.032 in |
| RoHS Compliant | Yes |
| Current | 24 A |
| Package Quantity | 50 |
