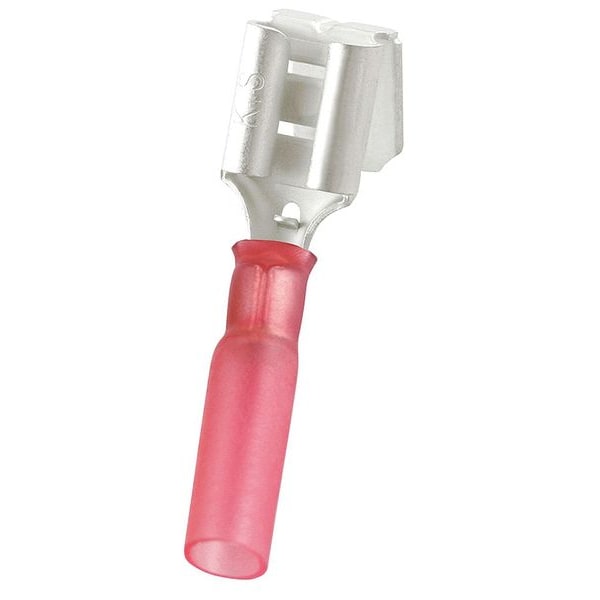

Piggyback, Termocontráctil, PE, 22-16, Paquete con 50 unidades.
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Item | Piggyback Disconnect |
| Insulation | Partial |
| Insulation Color | Red |
| Insulation Type | Heat Shrink |
| Wire Range | 22 to 16 AWG |
| Connection Type | Crimp |
| Overall Length | 1.339 in |
| Tab Size | 0.032 in x 0.250 in |
| Seam | Butted |
| Max. Voltage | 300 V |
| Max. Temp. | 221 deg F |
| Standards | Not Applicable |
| Connection Material | Brass |
| Barrel Inside Dia. | 0.217 in |
| Insulation Material | Polyolefin |
| Disconnect Style | Piggyback |
| Barrel Outside Diameter | 0.217 in |
| Tab Thickness | 0.032 in |
| Maximum Voltage | 600 V |
| Maximum Wire Size | 16 AWG |
| Termination Style | Crimp |
| Connection Orientation | Straight |
| Minimum Wire Size | 22 AWG |
| Terminal Type | Socket, Tab |
| Barrel Style | Crimp |
| RoHS Compliant | Yes |
| Insulation Coverage | Partial Coverage |
| Seam Style | Butted |
| UL 94 Flammability Rating | HB |
| Barrel Size | Standard |
| Current | 10 A |
| Tab Width | 1/4 in |
| Contact Finish | Tin |
| Maximum Operating Temperature | 221 deg F |
| Contact Material | Brass |
| Barrel Inside Diameter | 0.067 in |
| Package Quantity | 50 |
