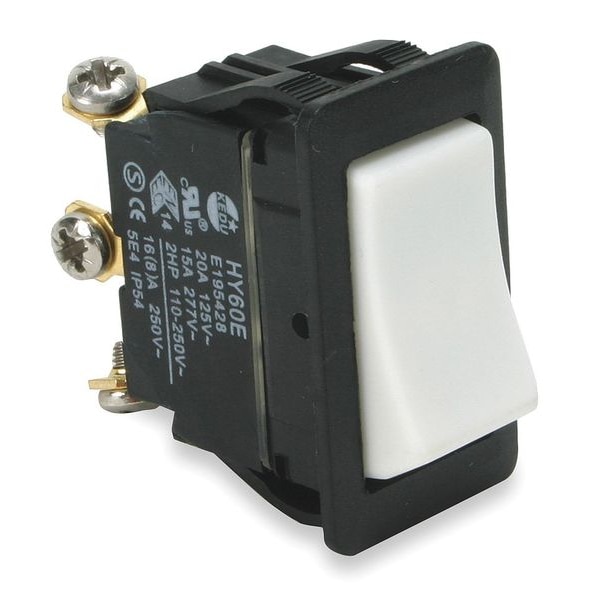

Interruptor basculante, SPDT, 3 conexiones
| Item | Rocker Switch |
|---|---|
| Contact Form | SPDT |
| Number of Connections | 3 |
| Switch Function | On |
| Terminals | Screw |
| Mounting Hole | 0.83 in x 1.45 in |
| AC Contact Rating | 15 A @ 277 V, 20 A @ 125 V |
| DC Contact Rating | Not Applicable |
| HP | 1 1/2 hp |
| Operating Temp. Range | 32 to 104 deg F |
| Switch Color | White |
| Standards | cRUus |
| Body Color | Black |
| Shop By | Closeouts |
| Product Type | Rocker Switch |
| IP Rating | Not Applicable |
| Series | HY60 |
| Lens Color | Not Applicable |
| NEMA Enclosure Rating | Not Applicable |
| Mounting Hole Length | 1.48 in |
| Manufacturer Warranty Length | 2 yr |
| Features | Not Applicable |
| Resistance Properties | Not Applicable |
| Overall Height | 0.37 in |
| Lamp Module Type | No Lamp Module Included |
| Mounting Hole Width | 0.83 in |
| Overall Width | 1.7 in |
| Includes Lamp Module | No Lamp Module Included |
| Terminal Connection Type | Screw Terminals |
| Operator Illumination | Non-Illuminated |
| Lamp Voltage - Maximum | Not Applicable |
| Overall Depth | 0.96 in |
| Number of Positions | 2 |
| Includes Lens | No Lens Included |
| Horsepower | 2 hp |
| Switch Function Configuration | On |
| Operating Temperature - Minimum | 32 deg F |
| Lamp Type | No Lamp Module Included |
| Operating Temperature - Maximum | 104 deg F |
| Package Quantity | 1 |
