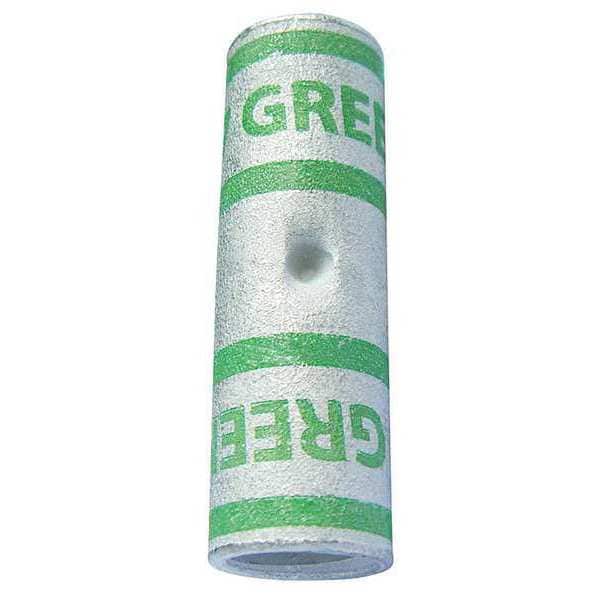

Short Barrel Splice, 1.52 in. L, Green
| Item | Short-Barrel Splice |
|---|---|
| Material | Copper |
| Length | 1.52 in |
| Color Code | Green |
| Overall Length | 1.52 in |
| Wire Gauge | 1 AWG |
| Die Code | 37 |
| Outside Dia. | 0.47 in |
| Standards | ANSI, UL 486A-486B |
| Length (Straight Wireway) | 1.52 in |
| Maximum Voltage | 600 V |
| Barrel Inside Diameter | 0.36 in |
| Minimum Wire Size | 1 AWG |
| Contact Finish | Tin |
| Maximum Conductors | 1 |
| Barrel Size | Short |
| Maximum Operating Temperature | 300 deg F |
| Seam Style | Seamless |
| RoHS Compliant | Yes |
| Strip Length | 25/32 in |
| Contact Material | Copper |
| For Conductor Material | Copper |
| Maximum Wire Insulation Diameter | 0.47 in |
| Special Features | Low Installed Cost, Provide a Low-Resistance Connection of High Quality |
| Barrel Outside Diameter | 0.47 in |
| Barrel Finish | Tin Plated |
| Termination Style | Crimp |
| Maximum Wire Size | 1 AWG |
| For Wire Type | Stranded |
| Number of Crimps | 2 |
| Package Quantity | 1 |
