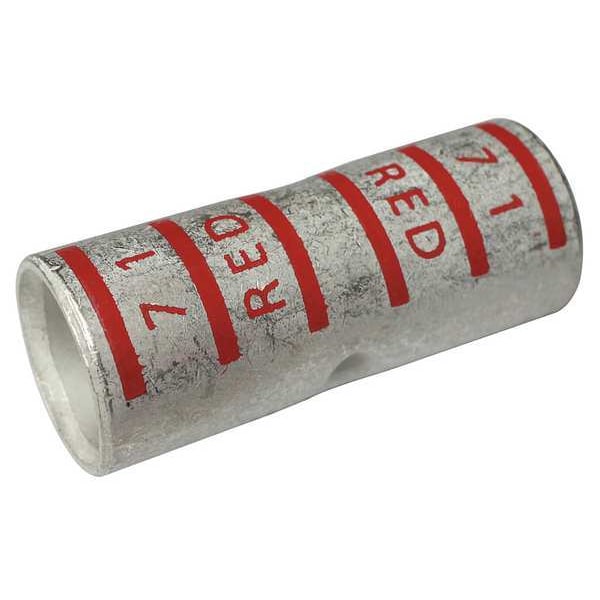

Short Barrel Splice, 2.27 in. L, Red
| Item | Short-Barrel Splice |
|---|---|
| Material | Copper |
| Length | 2.27 in |
| Color Code | Red |
| Overall Length | 2.27 in |
| Standards | ANSI, UL 486A-486B |
| Wire Gauge | 350 kcmil |
| Outside Dia. | 0.93 in |
| Die Code | 71 |
| Length (Straight Wireway) | 2.27 in |
| Seam Style | Seamless |
| Maximum Wire Insulation Diameter | 0.93 in |
| For Wire Type | Stranded |
| Barrel Inside Diameter | 3/4 in |
| Minimum Wire Size | 350 kcmil |
| Termination Style | Crimp |
| RoHS Compliant | Yes |
| Maximum Operating Temperature | 300 deg F |
| Maximum Voltage | 600 V |
| Number of Crimps | 4 |
| Contact Material | Copper |
| Maximum Wire Size | 350 kcmil |
| Barrel Size | Short |
| Contact Finish | Tin |
| Barrel Finish | Tin Plated |
| For Conductor Material | Copper |
| Strip Length | 1-5/32 in |
| Barrel Outside Diameter | 0.93 in |
| Maximum Conductors | 1 |
| Special Features | Low Installed Cost, Provide a Low-Resistance Connection of High Quality |
| Package Quantity | 1 |
