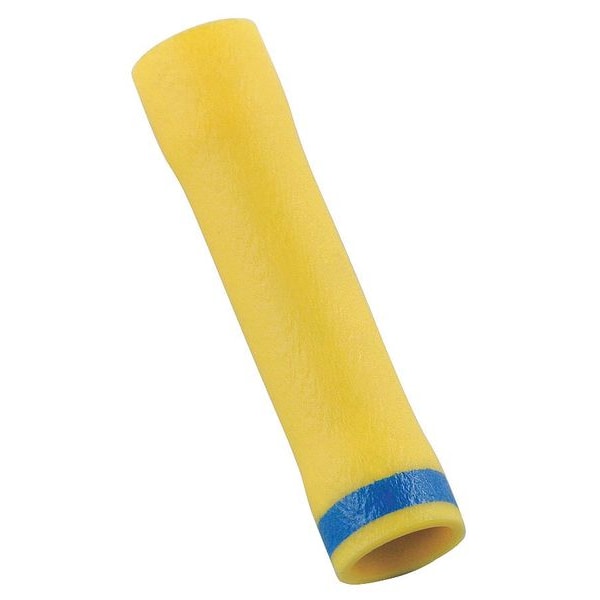

Conector de empalme, Vinilo, Amarillo, Paquete de 100
| Item | Splice Connector |
|---|---|
| Wire Range | 12 to 10 AWG and 16 to 14 AWG |
| Insulation Type | Vinyl |
| Seam | Butted |
| Connection Type | Crimp |
| Insulation Color | Yellow |
| Color | Yellow |
| Max. Voltage | 600 V |
| Overall Length | 1.22 in |
| Max. Temp. | 167 deg F |
| Connection Material | Copper |
| Standards | UL/cUL Listed |
| Barrel Inside Dia. | 0.091 in, 0.134 in |
| Connector Type | Butt Splice |
| Special Features | Changing Down |
| RoHS Compliant | Yes |
| Compatible with Product Type | Insulated Stranded Copper Cable |
| Seam Style | Seamless |
| Maximum Voltage | 600 V |
| Insulation Material | Vinyl |
| Minimum Wire Size | 16 AWG |
| For Maximum Wire Insulation Diameter | 0.064 in |
| Barrel Inside Diameter | 0.091 in |
| Strip Length | 1/4 in |
| UL 94 Flammability Rating | V-0 |
| Contact Finish | Tin |
| Maximum Operating Temperature | 167 deg F |
| Maximum Wire Size | 10 AWG |
| Maximum Conductors | 2 |
| Termination Style | Crimp |
| Compatible Installation Tool Model Number | 24C968 |
| Number of Splices | 1 |
| For Wire Type | Stranded |
| Body Finish | Tin Plated |
| Contact Material | Copper |
| Body Material | Copper |
| Package Quantity | 100 |
