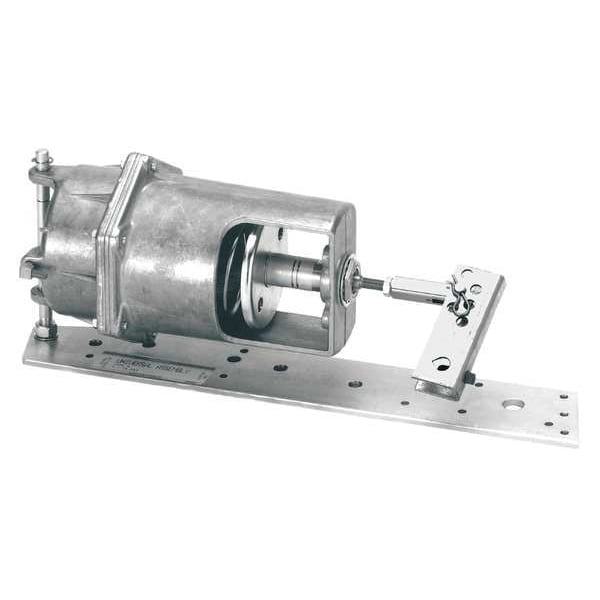

Pneumatic Actuator, 10 in. L, 3 to 7 psi
| Item | Pneumatic Damper Actuator |
|---|---|
| Operating PSI Range | 3 to 7 |
| Max. Air Pressure | 30 psi |
| Stroke | 4 in |
| Nominal Spring Range | 3 to 7 psi |
| Mounting Type | Pivot |
| Net Force Exerted @ 18 PSI | 121 lb |
| For Use With | Dampers or Air Valves |
| Provides | Modulating or Two Position Control |
| Width | 4-19/32 in |
| Net Force Exerted @ 0 PSI | 33 lb |
| Height | 4-5/8 in |
| Length | 10 in |
| Application | Air Valves, Dampers |
| Specific Valve Action | Spring Return Down |
| Stem Material | Stainless Steel |
| Overall Length | 9-3/8 in |
| Spring Range Maximum | 7 psi |
| Operating Temperature - Minimum | -20 deg F |
| Actuator Connection | Pivot |
| Actuator Type | Linear |
| Overall Depth | 4-5/8 in |
| For Media | Air |
| Operating Temperature - Maximum | 200 deg F |
| Control Pressure - Maximum | 30 psi |
| Spring Material | Steel |
| Air Connection Gender | Female |
| Spring Range Minimum | 3 psi |
| Air Connection Type | NPT |
| Includes Positioner | Positioner Not Included |
| Force at 0 psi | 33 lbf |
| Diaphragm Material | Rubber |
| Normal Rotation | Not Applicable |
| Fire/Smoke Application | Not UL Recognized Components for Fire/Smoke Applications |
| Manufacturer Series | 331 |
| Overall Width | 4-5/8 in |
| Air Connection Size | 1/8 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
