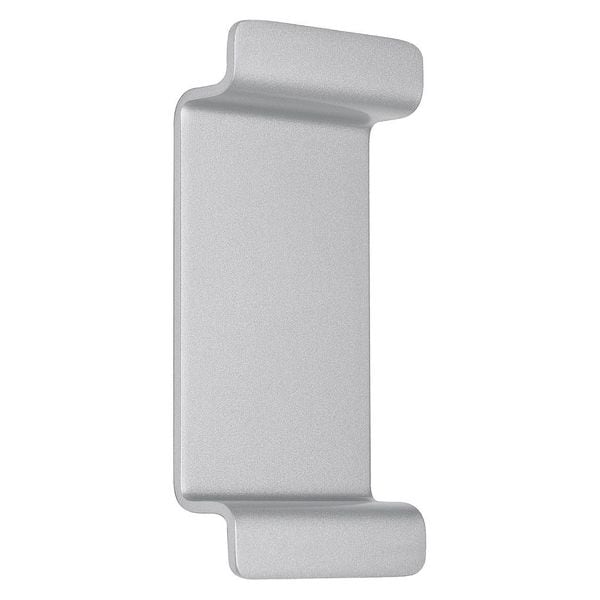

Exit Only Dummy Trim, Aluminum, 600
| Series | 600 |
|---|---|
| For Door Thickness | 1-21/64 in |
| Door Handing | Field Reversible |
| Finish | Aluminum |
| Fire Rated | No |
| Grade | 1 |
| Item | Mechanical Exit Device Trim |
| Color | Silver |
| Application | Exterior Trim for Exit Device |
| Standards | BHMA, UL Listed |
| Overall Length | 5-3/4 in |
| Max. Door Width | 48 in |
| Outside Trim Type | Pull |
| Max. Door Height | 96 in |
| Features | All Trims Are Furnished With Wrought Plates and Extruded Or Cast Solid Grips |
| Overall Width | 2-3/4 in |
| Performance | Heavy Duty |
| ADA Compliant | Yes |
| Visual Indicator Message | No Message |
| Product Type | Mechanical Exit Device Trim |
| ANSI/BHMA Finish | Aluminum Painted |
| ANSI Grade | 1 |
| Exit Device Style | Pull |
| Door Width - Minimum | Not Applicable |
| Visual Indicator Location | Not Applicable |
| Door Height - Maximum | 96 in |
| Length - Maximum | 5-3/4 in |
| Door Thickness - Maximum | 1-5/16 in |
| Length - Minimum | Not Applicable |
| Performance Grade | 1 |
| Hand Orientation | Non-Handed |
| For Use with Exit Device | Exterior |
| Door Width - Maximum | 48 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
