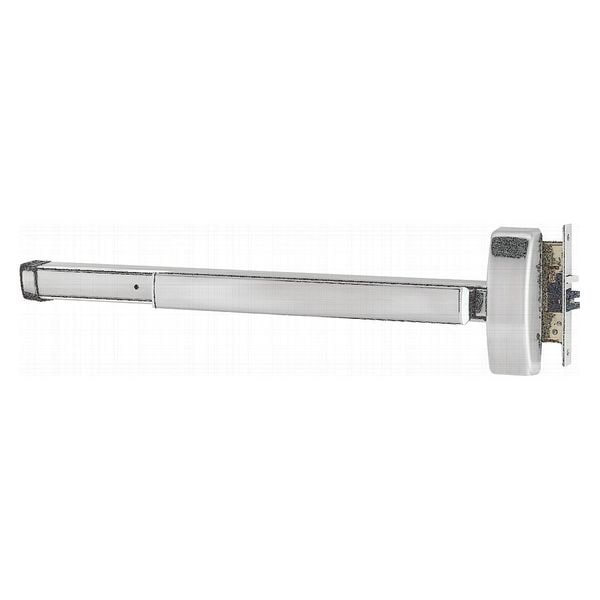

Rim, Satin SS, Series APEX 2000
| Series | APEX 2000 |
|---|---|
| Exit Device Type | Mortise |
| For Door Thickness | 1 3/4 in |
| Fits Stile Width | 4-1/4 in |
| Door Handing | Right Hand Reversible |
| Finish | Satin Stainless Steel |
| Fire Rated | Yes |
| Grade | 1 |
| Item | Rim |
| ADA Compliant | Yes |
| Standards | ANSI A117.1, BAA Compliant, CSFM, Florida Building Code Compliant for Hurricanes, Icing and Freezing Rain, 510.6 Blowing Dust Test, Illinois Accessibility Standard Compliant, Miami-Dade County Compliant for Hurricanes, MIL-STD 810G Section 509.6, MIL-STD 810G Section 521.3, TAA Compliant, UL and cUL 305 Listed |
| Performance | Heavy Duty |
| Outside Trim Type | Lever |
| Lockset Function | Government Buildings, Hospitals, Schools |
| Door Height - Minimum | 80 in |
| UL Fire Rating | UL10C, UBC 7-2 |
| Performance Grade | 1 |
| Door Width - Maximum | 36 in |
| Fire Rating | 3 hr |
| Door Thickness - Maximum | 2-1/4 in |
| Door Height - Maximum | 120 in |
| Door Thickness - Minimum | 1-3/4 in |
| ANSI Grade | 1 |
| ANSI/BHMA Finish | Satin Stainless Steel |
| Exit Bar Style | Touchbar |
| Hand Orientation | Right-Handed |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
