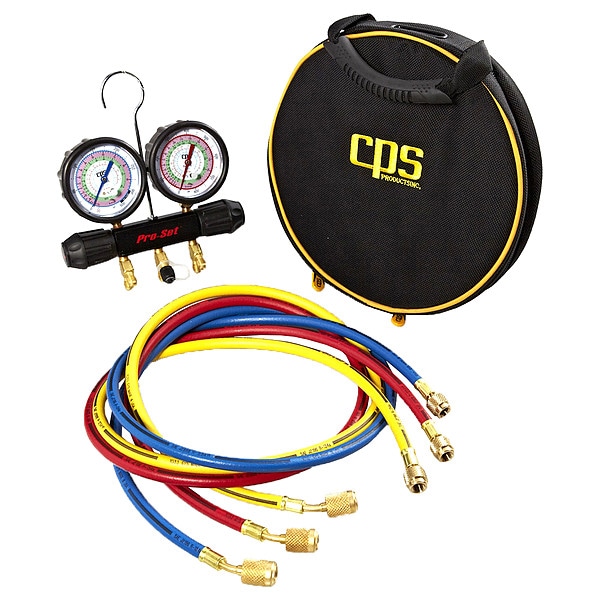

Manifold Gauge Set, 5 ft L, 3 1/2 in Gauge
| Item | Manifold Gauge Set |
|---|---|
| Number of Valves | 2 |
| Refrigerant Compatibility | R-134A, R-22, R-404A, R-410A |
| Number of Hoses | 3 |
| Hose Length | 5 ft |
| Features | Easy to Read 3 1/8 in (80mm), Extra Access Port in the Center with Schrader(R) Valve |
| Material | Anodized Aluminum (Body), Silicon (Dampening Cup) |
| Includes | (2) Valve, 5 ft ABB Hoses, Grip Rubber Handles, Hanging Hook, Protective Gauge Boots, Triple Seal(TM) Piston Valves |
| Gauge Accuracy | 1.00 |
| Includes Sightglass | Sightglass Not Included |
| Manifold Port Connection Size | 1/4 in |
| Calibration Certificate Type | Not Certified |
| Includes Vacuum Port | Vacuum Port Not Included |
| Response Time | Instantaneous |
| Low Side Display Pressure - Minimum | 30 inHg |
| Gauge Type | High Side, Low Side |
| Hose Connection Thread Direction | Right-Hand |
| Gauge Diameter | 3-1/2 in |
| Pressure Resolution | 0.1 psi |
| Temperature Resolution | 1 deg F |
| Manifold Port Connection Thread Direction | Right-Hand |
| A2L Compatibility | Not A2L Compatible |
| High Side Display Pressure - Minimum | 0 psi |
| Manifold Port Connection Type | SAE |
| Pressure Units Measured | psi |
| Vacuum Port Connection Size | Not Applicable |
| Manifold Port Connection Gender | Male |
| Product Type | Manifold Gauge Set |
| Accuracy | +/- 1% |
| High Side Display Pressure - Maximum | 800 psi |
| Body Material | Aluminum |
| Display Illumination | Non-Illuminated |
| Vacuum Port Connection Gender | Female |
| For Refrigerant Type | R-134A, R-22, R-404A, R-410A |
| Warranty | 1 yr |
| Hose Connection Type | SAE |
| Includes Gauge Boots | Boots Included |
| Vacuum Port Connection Type | Not Applicable |
| Display Type | Analog |
| Vacuum Port Connection Thread Direction | Not Applicable |
| Temperature Units Measured | Degrees F |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
