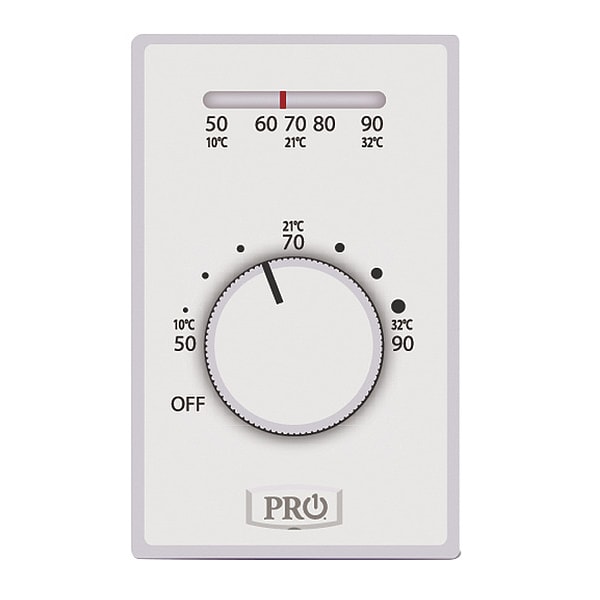

Line Volt Mechanical Tstat, Open on Rise, DPST, 120 to 277V AC
| Switch Action | Open on Rise |
|---|---|
| Voltage | 120 to 277V AC |
| Sensor Type | Bi-Metallic Spring |
| Differential | 3 Degrees F |
| Display Type | Analog |
| Thermostat Control Range | 50 to 90 deg F |
| Switch Type | DPST |
| Color | White |
| Width | 2-29/32 in |
| Height | 4-45/64 in |
| Depth | 1 in |
| Number of Switches | 2 |
| Application | Heat Only |
| Item | Line Volt Mechanical Tstat |
| Control Type | Exposed Dial |
| Thermostat Voltage | 120 to 277 V AC |
| Contact Rating Resistive @ 120V | 22 A |
| Contact Rating Resistive @ 240V | 22 A |
| Full Load Amps @ 120VAC | 22 A |
| Thermostat Heating/Cooling | Heating |
| Thermostat Programmable | No |
| Thermostat Switch Type | DPST |
| Standards | cULus Listed |
| Contact Rating Resistive @ 277V | 19 A |
| Thermostat Type | Line Voltage |
| Phase | 1 |
| Thermostat Item | Line Voltage Mechanical Thermostat |
| Display | Analog |
| Full Load Amps @ 240VAC | 22 A |
| Overall Width | 2-15/16 in |
| Overall Height | 4-11/16 in |
| Temperature Scale | Fahrenheit, Celsius |
| Full Load Amps @ 120V AC | 22 A |
| Overall Depth | 1 in |
| Temperature Control Range | 50 to 90 deg F |
| Maximum Control Temperature | 90 deg F |
| Switch Type/Action | Open, DPST on Rise |
| Fan Settings | No Fan Setting |
| Number of Poles | 2 |
| Temperature Readout | Yes |
| Compatible System Type | Electric Heating |
| Differential Type | Fixed |
| Remote Control Functions | No Remote Control Included |
| Stages | 1H |
| Mercury Free | Yes |
| Electrical Connection Type | Hardwired |
| Full Load Amps @ 240V AC | 22 A |
| Housing Material | Plastic |
| Housing Color | White |
| Mounting Direction | Vertical |
| Lead Length | 6 in |
| Number of Heating Stages | 1 |
| Includes Positive Off | Yes |
| System Settings | On-Off |
| Temperature Differential | 3 Degrees F |
| Enclosure NEMA Rating | 1 |
| Amperage | 22 A |
| Enclosure Color | White |
| Minimum Control Temperature | 50 deg F |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
