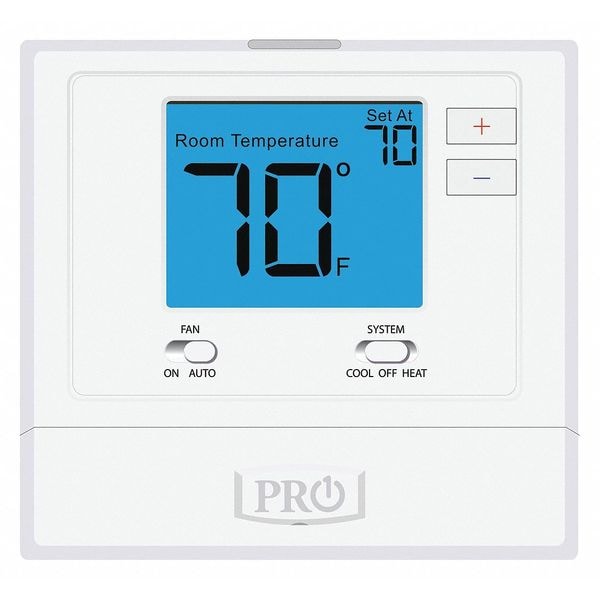

Low Voltage Thermostat, 1 H, 1 C, wall Mount, Hardwired/Battery, 18V AC, 30V AC
| Item | Low Voltage Thermostat |
|---|---|
| Voltage | 18V AC, 30V AC |
| Stages Heat | 1 |
| Mounting Type | Horizontal or Vertical |
| Mounting Location | Wall |
| Color | White |
| Control Range | 44 to 90 deg F |
| System Switching | Heat-Cool-Off |
| Stages Cool | 1 |
| Height | 4-1/4 in |
| Width | 4-45/64 in |
| Dual Transformer Compatible | No |
| Power Method | Battery, Hardwired |
| 750mV Compatible | Yes |
| Dehumidification Control | No |
| Remote Sensing Capability | No |
| Temperature Limiting | No |
| Humidification Control | No |
| Temporary Temperature Hold | No |
| Battery Backup | Yes |
| Depth | 1 in |
| Includes | 2 AA Batteries, Manual/Install Guide, Screws and Wall Anchors |
| Filter Indicator | No |
| Features | Single Stage 1H/1C |
| Fan Switching | Auto-on |
| Low Battery Indicator | Yes |
| Batteries Included | Yes |
| For Use With | Heating and Cooling |
| Automatic Changeover | No |
| Terminal Designations | B, C, G, O, RC, RH, W, Y |
| Display | Large Character |
| Programmable Fan | No |
| Key Pad Lockout | No |
| Temporary Program Override | No |
| Display Type | Digital |
| Control Type | Push Button |
| Stages | 1H/1C Conventional |
| Maximum Control Temperature | 90 deg F |
| Mounting Direction | Horizontal, Vertical |
| Application | Cool, Heat |
| Overall Width | 4-11/16 in |
| Battery Type | AA Batteries |
| Digit Size | Easy Read |
| Electrical Connection Type | Hardwired |
| Fan Settings | Auto-On |
| Millivolt Compatible | Yes |
| Shape | Square |
| Maximum Operating Humidity | 90 % |
| Changeover Type | Manual |
| Filter Change Reminder | No |
| Differential Type | Adjustable |
| Number of Heating Stages - Conventional System | 1 |
| Operating Temperature Range | 32 to 105 deg F |
| Compatible System Type | Electric Forced Air Furnaces, Gas Forced Air Furnaces, Millivolt |
| Temperature Differential | 0.2 Degrees F to 2 Degrees F |
| Number of Cooling Stages - Conventional System | 1 |
| Mounting Direction/Shape | Square |
| Maximum Operating Temperature | 105 deg F |
| Overall Depth | 1-1/16 in |
| Amperage | 1.5 A |
| Minimum Operating Temperature | 32 deg F |
| Minimum Control Temperature | 44 deg F |
| Backlit Screen Color | Blue |
| Frequency | 50 Hz, 60 Hz |
| Housing Color | White |
| Temperature Control Range | 44 to 90 deg F |
| Number of Switches | 2 |
| Thermostat Type | Low Voltage |
| Temperature Scale | Fahrenheit, Celsius |
| System Settings | Cool-Heat-Off |
| Temperature Sensitivity | +/-1 deg F |
| System/Fan Settings | Auto-On, Cool-Heat-Off |
| Programming Capability | Not Programmable |
| Includes Positive Off | Yes |
| Overall Height | 4-3/8 in |
| Output Signal | Not Applicable |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
