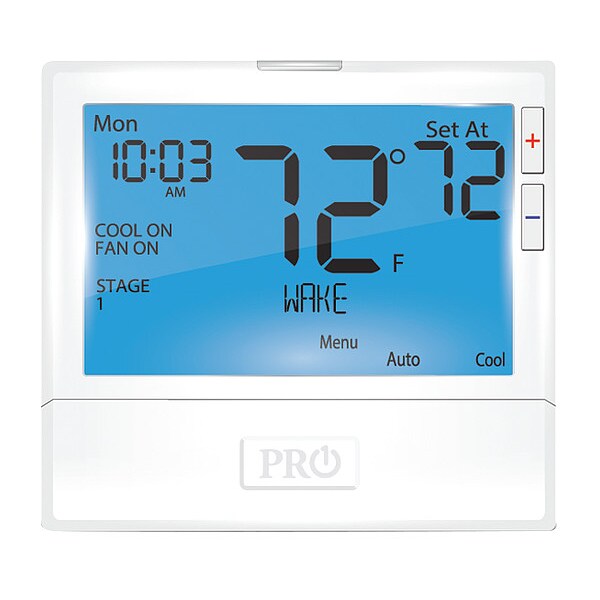

Low Voltage Thermostat, 7 or 5-1-1 Programs, 4 Heat Pump or 2 Conventional H, 2 C, 24VAC
| Item | Low Voltage Thermostat |
|---|---|
| Voltage | 24VAC |
| Stages Heat | 4 Heat Pump or 2 Conventional |
| Color | White |
| Control Range | 44 to 90 deg F |
| System Switching | Heat-Cool-Off |
| Stages Cool | 2 |
| Height | 4-13/32 in |
| Width | 4-45/64 in |
| Dual Transformer Compatible | Yes |
| Power Method | Battery, Hardwired |
| 750mV Compatible | Yes |
| Programs per Week | 7 or 5-1-1 |
| Display Type | LCD |
| Includes | (2) AA Batteries, Screws, Wall Anchors |
| Depth | 1-7/64 in |
| Display Color | Blue |
| Programmable Fan | Yes |
| WiFi Capability | No |
| Control Type | Push Button |
| Temporary Temperature Hold | Yes |
| Display Size | 8 sq in |
| Terminal Designations | RC, RH, G, Y, Y2, S1, S2, C, O, B, W/E, W2 |
| Low Battery Indicator | Yes |
| Temp. Settings per Day | 4, 2 |
| Stages | 2H/3C Conventional, 5H/3C Heat Pump |
| Key Pad Lockout | Yes |
| Automatic Changeover | Yes |
| Batteries Included | Yes |
| Fan Switching | Auto-on |
| Temporary Program Override | Yes |
| Dehumidification Control | Yes |
| Features | Glow In The Dark Light Button, Humidity and Dehumidity Control, Two and Four Occupancy/Unoccupancy Time Periods Available, Partial and Full Keypad Lockout, Auto Changeover |
| Temperature Limiting | No |
| Battery Backup | Yes |
| For Use With | Heating and Cooling |
| Filter Indicator | Yes |
| Humidification Control | Yes |
| Number of Heating Stages - Heat Pump System | 5 |
| Overall Depth | 1-1/8 in |
| Number of Cooling Stages - Heat Pump System | 3 |
| Thermostat Type | Low Voltage |
| Maximum Operating Humidity | 90 % |
| Temperature settings per day | 2, 4 |
| Application/Stages | Heat and Cool; 2H/3C Conventional, 5H/3C Heat Pump |
| Includes Batteries | Yes |
| Number of Cooling Stages - Conventional System | 3 |
| Backlit Screen | Yes |
| System Settings | Cool-Heat-Off |
| Frequency | 50 Hz, 60 Hz |
| Electrical Connection Type | Hardwired |
| Temperature Readout | Yes |
| Overall Height | 4-3/8 in |
| Smart Connectivity | No Connectivity |
| Operating Temperature Range | 32 to 105 deg F |
| Differential Heat | 0.2 deg F, 2 deg F |
| Overall Width | 4-11/16 in |
| Sensor Location | Remote |
| Battery Type | AA Batteries |
| Mounting Direction | Horizontal |
| Application | Cool, Heat |
| Changeover Type | Automatic |
| Shape | Rectangle |
| Includes Positive Off | Yes |
| System/Fan Settings | Auto-On, Cool-Heat-Off |
| Number of Heating Stages - Conventional System | 2 |
| Millivolt Compatible | Yes |
| Maximum Control Temperature | 90 deg F |
| Minimum Control Temperature | 44 deg F |
| Digit Size | Easy Read |
| Minimum Operating Temperature | 32 deg F |
| Temperature Scale | Fahrenheit, Celsius |
| Temperature Control Range | 44 to 90 deg F |
| Differential Cool | 0.2 deg F, 2 deg F |
| Mounting Direction/Shape | Horizontal, Vertical |
| Differential Type | Adjustable |
| Fan Settings | Auto-On |
| Filter Change Reminder | Yes |
| Housing Color | White |
| Maximum Operating Temperature | 105 deg F |
| Backlit Screen Color | Blue |
| Programming Capability | 5-1-1, 7 Day |
| Temperature Sensitivity | +/-1 deg F |
| Temperature Differential | 0.2 Degrees to 2.0 Degrees F |
| Compatible System Type | Electric Forced Air Furnaces, Gas Forced Air Furnaces, Heat Pump with Aux, Heat Pump without Aux, Millivolt, PTAC |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
