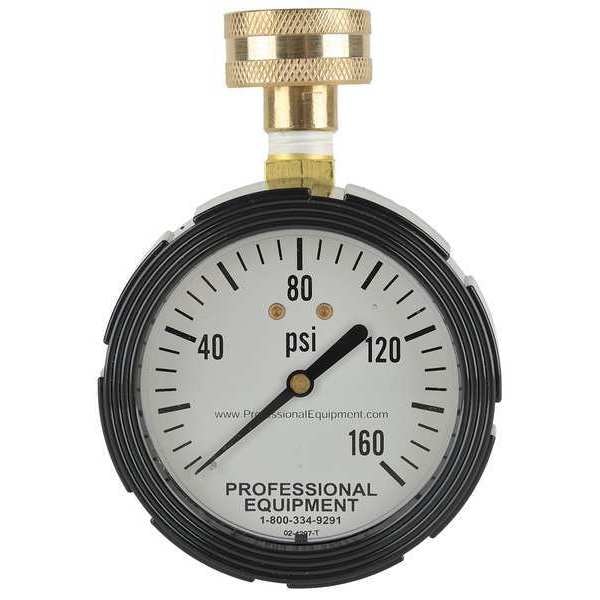

Water Pressure Gauge, Freeze Proof
| Item | Pressure Gauge |
|---|---|
| Application | Water Pressure Testing |
| Gauge Accuracy | +/-3.00% |
| Connection Size | 3/4 in Female Garden Hose Thread |
| Gauge Case Material | Nylon |
| Gauge Connection Size | 3/4 in |
| Smallest Graduation | 2 psi |
| Basic Gauge Case Material | Plastic |
| Basic Gauge Lens Material | Plastic |
| Gauge Primary Range Units | psi |
| Graduations | 20 psi |
| Gauge Primary Range Numbered Graduations | 20 |
| Gauge Socket Material | Brass |
| Case Color | Black |
| Series | LFS |
| Gauge Sensor Material | Phosphor Bronze |
| Gauge Application | Home Water Pressure Testing |
| Features | Freeze Proof |
| Connection Location | Top |
| Gauge Primary Range Values | 0 to 160 |
| Basic Gauge Wetted Parts | Brass / Bronze |
| Pressure and Vacuum Gauge Type | Pressure Gauge |
| For Use With | Standard Water Faucets |
| Operating Temp. Range | -40 Degrees to 150 Degrees F |
| Basic Gauge Socket Material | Brass |
| Gauge Filled With | Glycerin |
| Range | 0 to 160 psi |
| Gauge Connection Type | FGHT |
| Liquid Filled | Yes |
| Gauge Panel Mountable | No |
| Calibration Certificate Included | No |
| Gauge Nominal Dial Size | 2 1/2 in |
| Gauge Connection Location | Top |
| Gauge Case Color | Black |
| Includes | Brass Spigot, Washer |
| Gauge Primary Range Smallest Graduation | 2 |
| Gauge Lens Material | Acrylic |
| Basic Gauge Sensor Material | Bronze |
| Process Connection Gender | Female |
| Process Connection Size | 3/4 in |
| Process Connection Location | Top |
| Primary Scale Minor Graduations | 2 |
| Accuracy Grade | ASME B40.100 Grade B |
| Primary Scale Units | psi |
| Dial Color | White |
| Scale Type | Single |
| Freeze Resistant Movement | Yes |
| Ambient Operating Temperature Range | -40 Degrees to 150 Degrees F |
| Process Connection Type | FGHT |
| Accuracy Scale | Full Scale |
| Accuracy | +/- 3% |
| Nominal Dial Size | 2 1/2 in |
| Compatible Process Media | Water |
| Pressure Gauge Type | Home Water Line Test Kit |
| Sensor Type | Bourdon Tube |
| Socket Material | Brass |
| Primary Pressure Range | 0 to 160 |
| Pressure Range Type | Pressure |
| Standards | ASME |
| Lens Material | Acrylic |
| Sensor Material | Phosphor Bronze |
| Primary Scale Pressure Measurement - Maximum | 160 psi |
| Operating Temperature - Minimum | -40 deg F |
| Primary Scale Pressure Measurement - Minimum | 0 psi |
| Process Media Temperature - Minimum | -40 deg F |
| Operating Temperature - Maximum | 150 deg F |
| Nominal Dial Diameter | 2 1/2 in |
| Process Media Temperature - Maximum | 150 deg F |
| Case Material | Zytel Nylon |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
