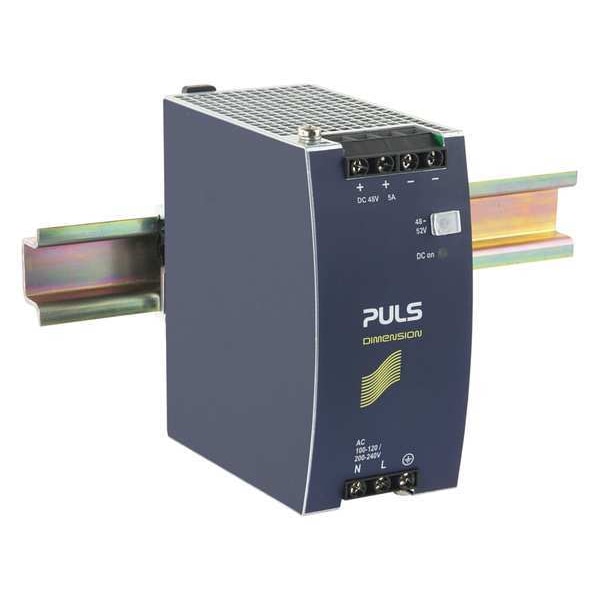

DC Power Supply, 100/120V AC; 200/240V AC, 48/52V DC, 240W, 5.0A, DIN Rail
| Item | DC Power Supply |
|---|---|
| Input Voltage | 100/120V AC; 200/240V AC |
| Output Voltage | 48/52V DC |
| Power Rating | 240 W |
| Output Amps | 5 A |
| Mounting | DIN Rail |
| Case Material | Metal Case |
| Phase - Electrical | Single |
| Style | Switching |
| Height | 124 mm |
| Width | 60 mm |
| Depth | 117 mm |
| Hz | 50/60 Hz |
| IP Rating | IP20 |
| Series | CS |
| Operating Temp. Range | -25 to 70 deg C |
| Standards | Class I Div. 2 Canada - CSA (217 KB), Class I Div. 2 USA - CSA (217 KB), EU Declaration of Conformity (61 KB), IEC 60950 CB Scheme (122 KB), Korea Certification (283 KB), Marine DNV (219 KB), SEMI F47 (2 MB), UK Declaration of Conformity (61 KB), UL 508 Canada, UL 508 USA, UL 60950-1 Canada, UL 60950-1 USA |
| Hold Up Time | 46 msec |
| Status Indicator | Green LED |
| Peak Amps | 6 |
| Features | High Efficiency and Long Lifetime |
| Output Noise | 100 mV |
| Connection | Screw |
| Power factor | 0.51 |
| External input fuse recommendation | B-10A, C-6A |
| Power losses, typ. | 22 W |
| Input inrush current | 3A / 3A |
| Ripple and noise voltage max. | 100 mVpp |
| Input inrush current limitation | active |
| Power reserves | 20% Power Boost |
| Efficiency, typ. | 0.916 |
| Derating | 6W/°C for >+60°C |
| MTBF SN 29500 @ 40°C (h) | 830,000 h |
| Adjustment range | 48 to 52 V |
| Output Power - Rated | 240 W |
| Wire Size - Maximum | 10 AWG |
| Current - Peak | 10 A |
| Wire Size - Minimum | 20 AWG |
| Manufacturer Warranty | 3 yr |
| Current - Inrush | 3 A |
| Mean Time Between Failures (MTBF) | 830,000 hr |
| Input Frequency - Nominal | 50/60 Hz |
| Maximum Efficiency @ 230V AC | 91.6% |
| Wire Connection Type | Terminals |
| Current - Output | 5 A |
| Housing Material | Plastic |
| Operating Temperature - Minimum | -13 deg F |
| Special Features | Minimal Inrush Current Surge |
| Operating Temperature - Maximum | 158 deg F |
| Start Up Time - Maximum | 850 msec |
| Package Quantity | 1 |
