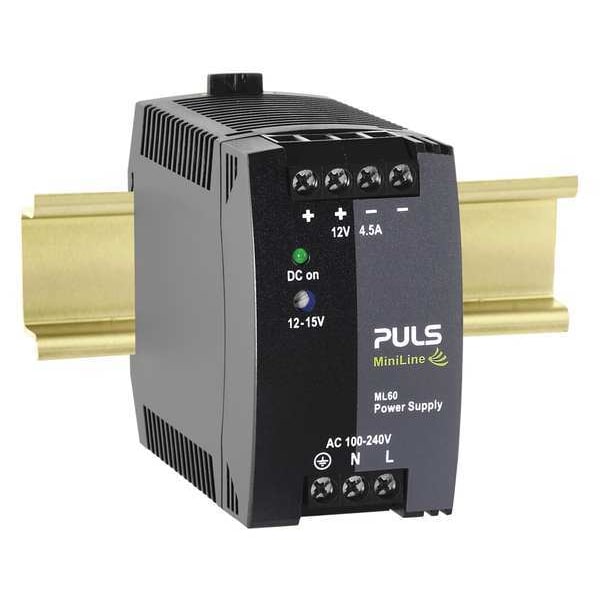

DC Power Supply, 100/240V AC, 12/15V DC, 54W, 4.5A, DIN Rail
| Item | DC Power Supply |
|---|---|
| Input Voltage | 100/240V AC |
| Output Voltage | 12/15V DC |
| Power Rating | 54 W |
| Output Amps | 4.5 A |
| Mounting | DIN Rail |
| Case Material | Plastic Case |
| Phase - Electrical | Single |
| Style | Switching |
| Height | 75 mm |
| Width | 45 mm |
| Depth | 91 mm |
| Hz | 50/60 Hz |
| Series | MiniLine |
| Standards | NEC Class2 Compliant |
| IP Rating | IP20 |
| Features | High Efficiency and Long Lifetime |
| Status Indicator | Green LED |
| Operating Temp. Range | -10 to 70 deg C |
| Output Noise | 50 mV |
| Hold Up Time | 25 msec |
| Connection | Screw |
| Input inrush current limitation | NTC |
| Ripple and noise voltage max. | 50 mVpp |
| Efficiency, typ. | 0.872 |
| Power losses, typ. | 7.9 W |
| Power factor | 0.5 |
| Derating | 1.4W/°C for >+60°C |
| External input fuse recommendation | B-10A, C-6A |
| Input inrush current | 16A / 32A |
| Adjustment range | 12 to 15 V |
| MTBF SN 29500 @ 40°C (h) | 1,690,000 h |
| Maximum Efficiency @ 230V AC | 87.2% |
| Operating Temperature - Minimum | 14 deg F |
| Start Up Time - Maximum | 120 msec |
| Wire Size - Maximum | 10 AWG |
| Wire Connection Type | Terminals |
| Current - Peak | 17 A |
| Output Power - Rated | 54 W |
| Current - Output | 4.5 A |
| Housing Material | Plastic |
| Mean Time Between Failures (MTBF) | 1,690,000 hr |
| Input Frequency - Nominal | 50/60 Hz |
| Current - Inrush | 32 A |
| Operating Temperature - Maximum | 158 deg F |
| Manufacturer Warranty | 3 yr |
| Package Quantity | 1 |
