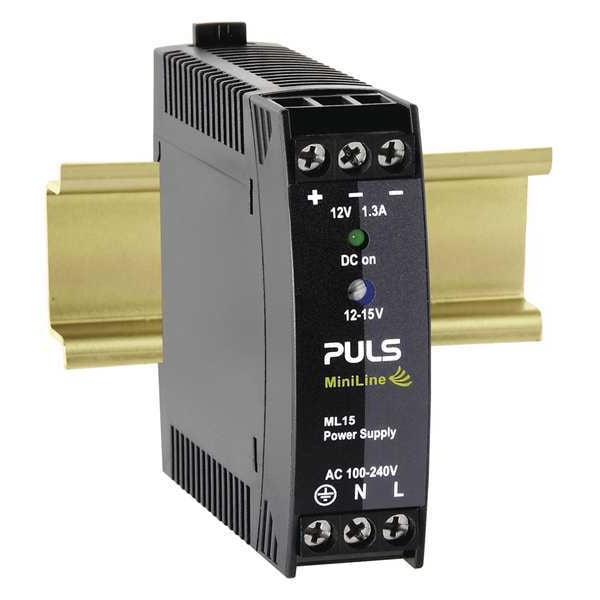

DC Power Supply, 100/240V AC, 15 W, 1.3 A, DIN Rail
| Item | DC Power Supply |
|---|---|
| Input Voltage | 100/240V AC |
| Output Power - Rated | 15 W |
| Current - Output | 1.3 A |
| Mounting | DIN Rail |
| Housing Material | Plastic |
| Hold Up Time | 46 msec |
| Features | High Efficiency and Long Lifetime |
| Status Indicator | Green LED |
| Standards | NEC Class2 Compliant |
| Style | Switching |
| Height | 75 mm |
| Output Noise | 75 mV |
| IP Rating | IP20 |
| Power Rating | 15 W |
| Series | MiniLine |
| Case Material | Plastic Case |
| Output Amps | 1.3 A |
| Output Voltage | 12/15V DC |
| Phase - Electrical | Single |
| Operating Temp. Range | -10 to 70 deg C |
| Hz | 50/60 Hz |
| Depth | 91 mm |
| Width | 22.5 mm |
| Connection | Screw |
| External input fuse recommendation | B-6A / C-3A |
| Input inrush current | 16A / 31A |
| Derating | 0.4W/°C for >+60°C |
| MTBF SN 29500 @ 40°C (h) | 3,811,000 h |
| Ripple and noise voltage max. | 75 mVpp |
| Power factor | 0.44 |
| Power losses, typ. | 3.2 W |
| Efficiency, typ. | 0.825 |
| Input inrush current limitation | NTC |
| Adjustment range | 12 to 15 V |
| Operating Temperature - Maximum | 158 deg F |
| Maximum Efficiency @ 230V AC | 82.5% |
| Wire Connection Type | Terminals |
| Current - Inrush | 31 A |
| Manufacturer Warranty | 3 yr |
| Wire Size - Minimum | 20 AWG |
| Operating Temperature - Minimum | 14 deg F |
| Current - Peak | 13 A |
| Wire Size - Maximum | 10 AWG |
| Input Frequency - Nominal | 50/60 Hz |
| Mean Time Between Failures (MTBF) | 3,811,000 hr |
| Start Up Time - Maximum | 780 msec |
| Package Quantity | 1 |
