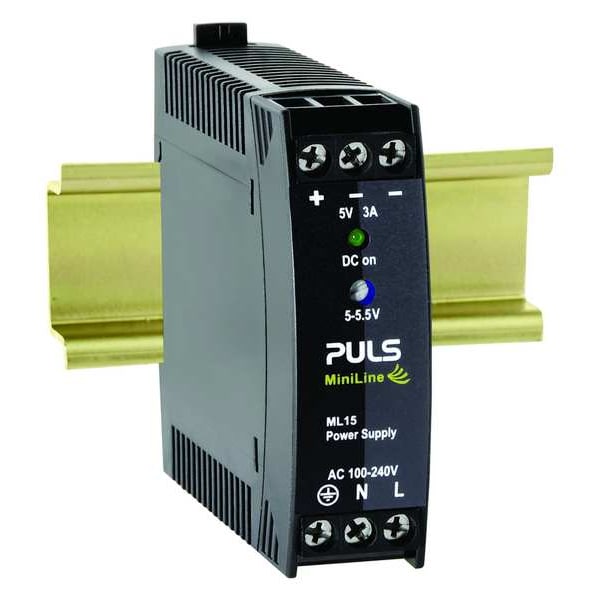

DC Power Supply, 100/240V AC, 15 W, 3 A, DIN Rail
| Item | DC Power Supply |
|---|---|
| Input Voltage | 100/240V AC |
| Output Power - Rated | 15 W |
| Current - Output | 3 A |
| Mounting | DIN Rail |
| Housing Material | Plastic |
| Case Material | Plastic Case |
| Series | MiniLine |
| Power Rating | 15 W |
| Output Voltage | 5/5.5V DC |
| Hold Up Time | 45 msec |
| Status Indicator | Green LED |
| Style | Switching |
| IP Rating | IP20 |
| Depth | 91 mm |
| Operating Temp. Range | -10 to 70 deg C |
| Height | 75 mm |
| Hz | 50/60 Hz |
| Phase - Electrical | Single |
| Output Amps | 3 A |
| Output Noise | 50 mV |
| Standards | NEC Class2 Compliant |
| Width | 22.5 mm |
| Features | High Efficiency and Long Lifetime |
| Connection | Screw |
| External input fuse recommendation | B-6A / C-3A |
| Ripple and noise voltage max. | 50 mVpp |
| Adjustment range | 5 to 5.5 V |
| Input inrush current limitation | NTC |
| Power factor | 0.44 |
| Efficiency, typ. | 0.772 |
| Input inrush current | 16A / 31A |
| Power losses, typ. | 4,5W |
| Derating | 0.4W/°C for >+60°C |
| MTBF SN 29500 @ 40°C (h) | 2,686,000 h |
| Mean Time Between Failures (MTBF) | 2,686,000 hr |
| Current - Peak | 13 A |
| Wire Size - Minimum | 20 AWG |
| Manufacturer Warranty | 3 yr |
| Current - Inrush | 31 A |
| Wire Connection Type | Terminals |
| Maximum Efficiency @ 230V AC | 77.2% |
| Input Frequency - Nominal | 50/60 Hz |
| Wire Size - Maximum | 10 AWG |
| Operating Temperature - Minimum | 14 deg F |
| Operating Temperature - Maximum | 158 deg F |
| Start Up Time - Maximum | 630 msec |
| Package Quantity | 1 |
