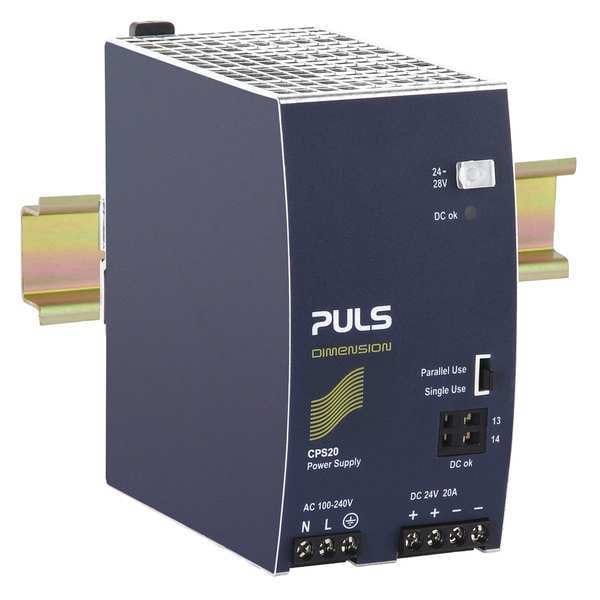

DC Power Supply, 100/240V AC, 480 W, 20 A, DIN Rail
| Item | DC Power Supply |
|---|---|
| Input Voltage | 100/240V AC |
| Output Power - Rated | 480 W |
| Current - Output | 20 A |
| Mounting | DIN Rail |
| Housing Material | Plastic |
| Width | 65 mm |
| Power Rating | 480 W |
| Peak Amps | 24 |
| Hz | 50/60 Hz |
| Output Voltage | 24/28V DC |
| Case Material | Metal Case |
| Series | C |
| Hold Up Time | 26 msec |
| IP Rating | IP20 |
| Style | Switching |
| Depth | 127 mm |
| Standards | Class I Div. 2 Canada - CSA (217 KB), Class I Div. 2 USA - CSA (217 KB), EU Declaration of Conformity (61 KB), IEC 60950 CB Scheme (122 KB), Korea Certification (283 KB), Marine DNV (219 KB), SEMI F47 (2 MB), UK Declaration of Conformity (61 KB), UL 508 Canada, UL 508 USA, UL 60950-1 Canada, UL 60950-1 USA |
| Status Indicator | DC OK Signal |
| Phase - Electrical | Single |
| Operating Temp. Range | -25 to 70 deg C |
| Output Amps | 20 A |
| Features | High Efficiency and Long Lifetime |
| Height | 124 mm |
| Output Noise | 50 mV |
| Connection | Screw |
| Power factor | 0.95 |
| External input fuse recommendation | B-10A, C-10A |
| Efficiency, typ. | 0.94 |
| Input inrush current | 9A / 7A |
| Power losses, typ. | 37.8 W, 30.6 W |
| Derating | 12W/°C for >+60°C |
| Adjustment range | 24 to 28 V |
| DC-OK signal | yes |
| Input inrush current limitation | active |
| MTBF SN 29500 @ 40°C (h) | 537,000 h |
| Power reserves | 20% Power Boost |
| Harmonic correction | active |
| Ripple and noise voltage max. | 50 mVpp |
| Wire Size - Maximum | 10 AWG |
| Special Features | Parallel Capability, Minimal Inrush Current Surge |
| Maximum Efficiency @ 230V AC | 94% |
| Mean Time Between Failures (MTBF) | 537,000 hr |
| Operating Temperature - Minimum | -13 deg F |
| Start Up Time - Maximum | 850 msec |
| Manufacturer Warranty | 3 yr |
| Current - Peak | 13 A |
| Wire Size - Minimum | 20 AWG |
| Wire Connection Type | Terminals |
| Current - Inrush | 9 A |
| Input Frequency - Nominal | 50/60 Hz |
| Operating Temperature - Maximum | 158 deg F |
| Package Quantity | 1 |
